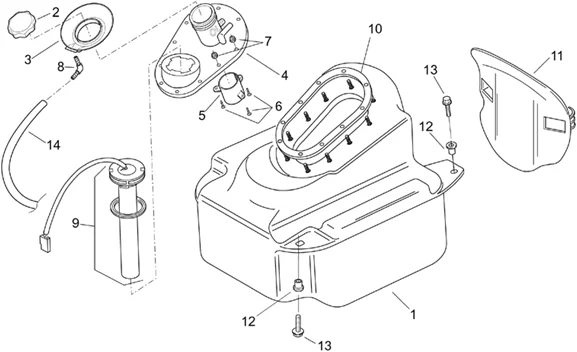

Chassis : 28.24 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.24.PNG)
1 |
AP8138153 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
2 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/8/9/img/45189.jpg)
3 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC, 125 LEONARDO -AP8102605- More informationQuantity required : 1 |
||||||
|
4 |
AP8102736 - BRIDE RESERVOIR ESS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/8/6/7/img/51867.jpg)
5 |
AP8158837 - ARR?T; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
7 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451- More informationQuantity required : 10 |
||||||
|
8 |
AP8102699 - RACC.2 VOIES 90° BLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/7/img/47497.jpg)
9 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2001 -AP8124478- More informationQuantity required : 1 |
||||||
|
10 |
AP8120917 - JOINT RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
11 |
AP8138600 - PROTECTION CABL.HT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
12 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
13 |
AP8152280 - VIS BRIDE More informationQuantity required : 5 |
||||||
|
14 |
AP8120955 - TUBO GRIGIO 3X8 More informationQuantity required : 1 |
