Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

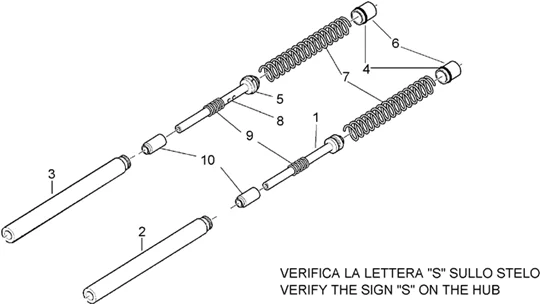

Chassis : 28.04 FOURCHE - TIGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.04.PNG)
1 |
AP8163029 - AMORTISSEUR; More informationQuantity required : 1 |
||||||
|
1 |
AP8123763 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
1 |
AP8203572 - RONDELLE ETANCHEITE More informationQuantity required : 2 |
||||||
|
1 |
AP8203794 - RONDELLE More informationQuantity required : 2 |
||||||
|
2 |
Tige gauche |
||||||
|
2 |
Tige |
||||||
|
2 |
AP8123774 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
2 |
600123 - BOULON M8X30 More informationQuantity required : 2 |
||||||
|
3 |
AP8123752 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
3 |
Tige |
||||||
|
3 |
AP8123767 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/3/img/67413.jpg)
3 |
FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/3/6/1/img/47361.jpg)
4 |
AP8123775 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/1/img/67411.jpg)
4 |
600125 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/5/7/img/71557.jpg)
4 |
AP8123921 - BAGUE DE BUTEE; More informationQuantity required : 2 |
||||||
|
5 |
AP8123754 - SEGMENT More informationQuantity required : 1 |
||||||
|
5 |
AP8123776 - BAGUE More informationQuantity required : 1 |
||||||
|
5 |
AP8103199 - JOINT SPI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/3/0/img/71530.jpg)
5 |
AP8123769 - JOINT SPI More informationQuantity required : 2 |
||||||
|
6 |
600121 - BOULON FOURCHE More informationQuantity required : 2 |
||||||
|
6 |
AP8123761 - BOUCHON More informationQuantity required : 2 |
||||||
|
6 |
Rondelle; |
||||||
|
6 |
AP8123770 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
AP8123699 - RESSORT; More informationQuantity required : 2 |
||||||
|
7 |
AP8123762 - RESSORT More informationQuantity required : 2 |
||||||
|
7 |
AP8123771 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
7 |
AP8203447 - DOUILLE DE COULISSEMENT; More informationQuantity required : 2 |
||||||
|
8 |
AP8163027 - AMORTISSEUR; More informationQuantity required : 1 |
||||||
|
8 |
AP8123763 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
8 |
AP8123706 - FOURREAU D; More informationQuantity required : 1 |
||||||
|
8 |
AP8123772 - FOURREAU D More informationQuantity required : 1 |
||||||
|
9 |
AP8123708 - CONTRE-RESSORT; More informationQuantity required : 2 |
||||||
|
9 |
AP8123764 - RESSORT More informationQuantity required : 2 |
||||||
|
9 |
AP8123707 - FOURREAU G; More informationQuantity required : 1 |
||||||
|
9 |
AP8123773 - FOURREAU G More informationQuantity required : 1 |
||||||
|
10 |
AP8123701 - TAMPON DE FOND; More informationQuantity required : 2 |
||||||
|
10 |
AP8123765 - TAMPON DE FOND More informationQuantity required : 2 |
||||||
|
10 |
AP8203571 - VIS More informationQuantity required : 1 |
||||||
|
10 |
AP8203796 - VIS More informationQuantity required : 1 |
