Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

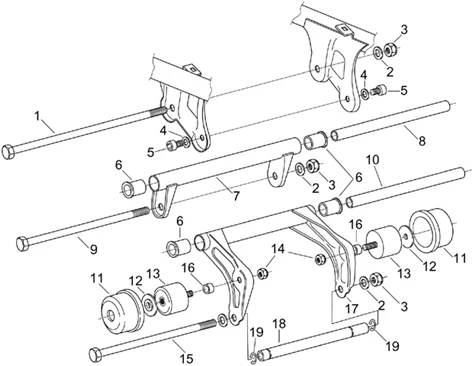

Chassis : 28.06 BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_28.06.PNG)
1 |
AP8121930 - PIVOT SUPPORT MOTEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
2 |
AP8152018 - RONDELLE FER PLATE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
3 |
AP8150432 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
4 |
AP8150210 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
|
5 |
B063938 - VITE TCEI M10X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/7/9/img/45179.jpg)
6 |
AP8102538 - DOUILLE EN RESINE More informationQuantity required : 4 |
||||||
|
7 |
AP8135850 - BIELLETTE FIXATION CHASSIS; More informationQuantity required : 1 |
||||||
|
8 |
AP8121975 - DOUILLE BIELLETTE; More informationQuantity required : 1 |
||||||
|
9 |
AP8221227 - PIVOT M12X270 More informationQuantity required : 1 |
||||||
|
11 |
AP8121931 - PROT.FIN COURSE BIELL.; More informationQuantity required : 2 |
||||||
|
12 |
AP8121214 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
14 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
15 |
AP8221160 - PIVOT SUPPORT MOTEUR More informationQuantity required : 1 |
||||||
|
16 |
AP8121218 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
17 |
AP8135622 - BIELLETTE FIXATION MOTEUR; More informationQuantity required : 1 |
||||||
|
18 |
AP8121954 - TUBE ENVELOPPE MOTEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/4/1/img/55741.jpg)
19 |
AP8206233 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 2 |
