Vehicle Exploded View - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

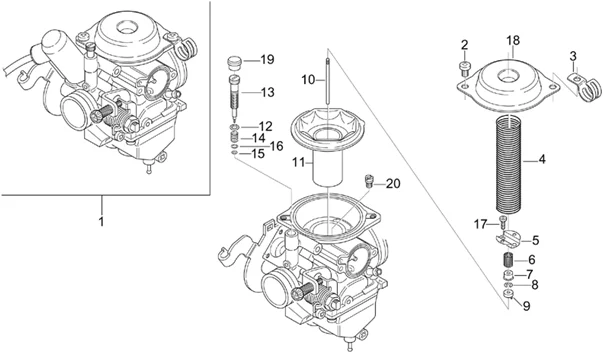

Moteur : 29.28 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_29.28.PNG)
1 |
AP8106912 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
1 |
AP8106913 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
3 |
AP8106471 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
4 |
AP8106472 - RESSORT More informationQuantity required : 1 |
||||||
|
5 |
AP8106473 - PLAQUE More informationQuantity required : 1 |
||||||
|
7 |
AP8106475 - BAGUE More informationQuantity required : 1 |
||||||
|
8 |
AP8106475 - BAGUE More informationQuantity required : 1 |
||||||
|
9 |
AP8106476 - BAGUE More informationQuantity required : 1 |
||||||
|
10 |
AP8106477 - POINTEAU More informationQuantity required : 1 |
||||||
|
11 |
AP8106478 - MEMBRANE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/4/7/img/45547.jpg)
12 |
AP8106479 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
13 |
AP8106480 - VIS MELANGE MINIMUM More informationQuantity required : 1 |
||||||
|
14 |
AP8122829 - RESSORT; More informationQuantity required : 1 |
||||||
|
15 |
AP8122854 - RONDELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/2/6/6/img/47266.jpg)
16 |
O'RING GASKET FOR CARB AIR SCREW "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2001, 650 PEGASO 1992>2000 -AP8122827- More informationQuantity required : 1 |
||||||
|
18 |
AP8106469 - COUVERCLE More informationQuantity required : 1 |
