Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

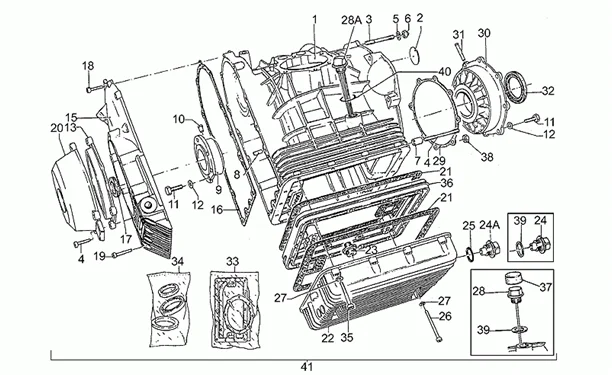

Moteur : 34.36 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_34.36.PNG)
1 |
GU140007655 - CARTER MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/1/img/129101.jpg)
2 |
GU12003900 - DISQUE More informationQuantity required : 1 |
||||||
|
3 |
GU96508066 - VIS SANS TETE M8X66 More informationQuantity required : 4 |
||||||
|
4 |
GU96508075 - VIS SANS TETE M8X75 More informationQuantity required : 2 |
||||||
|
5 |
GU95004208 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
6 |
GU92781081 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
GU12018900 - DOUILLE D'ACCOUPLEMENT More informationQuantity required : 2 |
||||||
|
8 |
GU95512081 - GOUPILLE More informationQuantity required : 2 |
||||||
|
9 |
GU140119005 - FLANC COMPLET More informationQuantity required : 1 |
||||||
|
9 |
GU14011901 - BRIDE MIN.0,2 MM More informationQuantity required : 1 |
||||||
|
10 |
GU12012200 - GOUPILLE More informationQuantity required : 1 |
||||||
|
11 |
GU98054425 - VIS M8X25 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
12 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 14 |
||||||
|
13 |
GU18001150 - BRIDE More informationQuantity required : 1 |
||||||
|
14 |
GU98310630 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/2/5/img/128525.jpg)
16 |
GASKET FOR TIMING SYSTEM COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU05001231- More informationQuantity required : 1 |
||||||
|
17 |
GU90402840 - BAGUE D'ETANCHEITE 28X38X7 More informationQuantity required : 1 |
||||||
|
18 |
GU98612325 - VIS M6X25 More informationQuantity required : 8 |
||||||
|
18 |
GU98622325 - VIS M6X25 More informationQuantity required : 8 |
||||||
|
19 |
GU98610335 - VIS TCEI M6X18 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
19 |
GU98620335 - VIS M6X35 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/1/img/129411.jpg)
20 |
TIMIN SYSTEM CASING COVER "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI (2 VALVES ENGINE) -GU18001650- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/7/6/img/129176.jpg)
21 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO -GU14003600- More informationQuantity required : 2 |
||||||
|
23 |
GU14003800 - RACCORD More informationQuantity required : 1 |
||||||
|
24 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
|
24 |
GU12003702 - BOUCHON VID.HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
25 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/6/6/img/132866.jpg)
26 |
GU98052390 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
27 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 18 |
||||||
|
28 |
GU28004950 - BOUCHON DE REMPLISS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/7/3/img/130473.jpg)
28 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI - 2 VALVES -GU30004910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/0/img/125500.jpg)
29 |
GASKET FOR PLATE (CLUTCH SIDE) "PIAGGIO GENUINE PART" MOTO-GUZZI ENSEMBLE DE LA GAMME -GU05011830- More informationQuantity required : 1 |
||||||
|
30 |
GU12011402 - BRIDE MIN.0,4 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/7/img/129107.jpg)
30 |
FLANGE (ON CLUTCH SIDE) MIN.0,6 MM "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI RANGE -GU12011403- More informationQuantity required : 1 |
||||||
|
30 |
GU12011401 - BRIDE MIN.0,2 MM More informationQuantity required : 1 |
||||||
|
30 |
GU120114005 - BRIDE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/8/img/129108.jpg)
31 |
PIN FOR REAR BEARING "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12011700- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/4/img/125184.jpg)
32 |
O'RING GASKET ON CRANKSHAFT (CLUTCH SIDE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90405367- More informationQuantity required : 1 |
||||||
|
34 |
GU17999550 - KIT MOTEUR SPI More informationQuantity required : 1 |
||||||
|
35 |
GU98620355 - VIS M6X60 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.JPG)
35 |
AP8150045 - VIS More informationQuantity required : 14 |
||||||
|
38 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
39 |
DRAIN CAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU95100709- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
40 |
GU90706178 - JOINT TORIQUE 17,86X2,62 More informationQuantity required : 1 |
