Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994

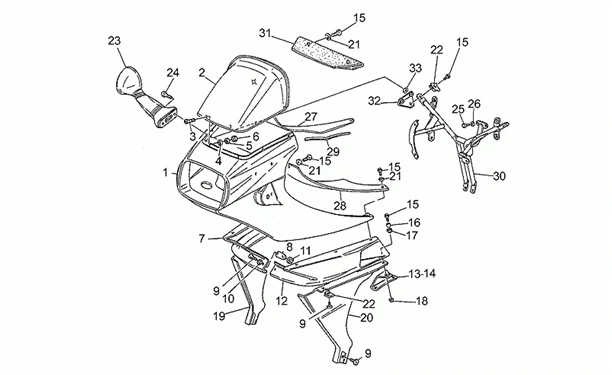

Chassis : 33.04 CARENAGE

Carenage

Search

1

	P2R reference
	Maker reference	GU285754921

CARENAGE

1

	P2R reference
	Maker reference	GU28575494

CARENAGE

1

	P2R reference
	Maker reference	GU28575495

CARENAGE

2

	P2R reference	130229
	Maker reference	GU28577278

GU28577278 - PARE-BRISE

More information

Quantity required : 1

3

	P2R reference
	Maker reference	GU98260416

Vis

4

	P2R reference
	Maker reference	GU907160575

5

	P2R reference	132676
	Maker reference	GU95007204

GU95007204 - RONDELLE

More information

Quantity required : 6

6

	P2R reference	132499
	Maker reference	GU92630104

GU92630104 - ECROU M4X0,7

More information

Quantity required : 6

7

	P2R reference
	Maker reference	GU285703921

COTE

7

	P2R reference	130206
	Maker reference	GU28570394

GU28570394 - COTE

More information

Quantity required : 1

7

	P2R reference
	Maker reference	GU28570395

COTE

8

	P2R reference
	Maker reference	GU28571292

PLAQUETTE

9

	P2R reference	133032
	Maker reference	GU98326016

GU98326016 - VIS

More information

Quantity required : 6

10

	P2R reference	131967
	Maker reference	GU66478610

GU66478610 - RONDELLE NYLON 6X17X1

More information

Quantity required : 4

11

	P2R reference	73548
	Maker reference	GU92630206

GU92630206 - ECROU M6X1

More information

Quantity required : 2

12

	P2R reference
	Maker reference	GU285704921

COTE

12

	P2R reference
	Maker reference	GU28570495

COTE

12

	P2R reference
	Maker reference	GU285704945

13

	P2R reference	130213
	Maker reference	GU285708781

GU285708781 - PLAQUE

More information

Quantity required : 1

14

	P2R reference	130214
	Maker reference	GU285708791

GU285708791 - PLAQUE

More information

Quantity required : 1

15

	P2R reference	132971
	Maker reference	GU98230620

GU98230620 - VIS

More information

Quantity required : 10

16

	P2R reference	132306
	Maker reference	GU91180607

GU91180607 - ENTRETOISE

More information

Quantity required : 2

17

	P2R reference	132361
	Maker reference	GU91551086

GU91551086 - CAOUTCHOUC

More information

Quantity required : 2

18

	P2R reference	165260
	Maker reference	GU92601206

GU92601206 - ECROU

More information

Quantity required : 2

19

	P2R reference
	Maker reference	GU285703785

19

	P2R reference
	Maker reference	GU285703795

20

	P2R reference
	Maker reference	GU28570479

Sous-carène G

20

	P2R reference
	Maker reference	GU285704785

21

	P2R reference	164510
	Maker reference	GU95001206

GU95001206 - RONDELLE

More information

Quantity required : 6

22

	P2R reference	130222
	Maker reference	GU28576590

GU28576590 - CLIP

More information

Quantity required : 4

23

	P2R reference
	Maker reference	GU177698615

24

	P2R reference	133229
	Maker reference	GU98822320

GU98822320 - VIS

More information

Quantity required : 4

25

	P2R reference	132928
	Maker reference	GU98084316

GU98084316 - VIS M6X16

More information

Quantity required : 4

26

	P2R reference	132651
	Maker reference	GU95000206

GU95000206 - RONDELLE

More information

Quantity required : 4

27

	P2R reference
	Maker reference	GU28576292

T.de bord lat.D

28

	P2R reference
	Maker reference	GU28576392

T.de bord lat. G

29

	P2R reference	101336
	Maker reference	GU00823932085

GU00823932085 - PROFILO PVC NERO

More information

Quantity required : 2

30

	P2R reference
	Maker reference	GU285786785

31

	P2R reference
	Maker reference	GU28571792

TABLEAU DE BORD

32

	P2R reference
	Maker reference	GU285794785

33

	P2R reference	132566
	Maker reference	GU93110060

GU93110060 - CAOUTCHOUC

More information

Quantity required : 4
