Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

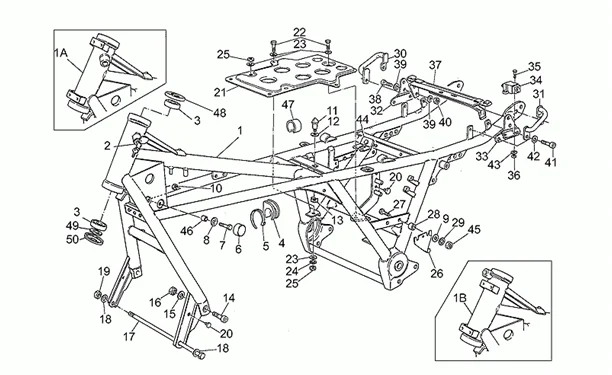

Chassis : 33.30 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.30.PNG)
1 |
GU28400160 - CADRE More informationQuantity required : 1 |
||||||
|
2 |
GU19782520 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
3 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI BREVIA, BELLAGIO, CALIFORNIA -GU92249225- More informationQuantity required : 2 |
||||||
|
5 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
6 |
FRAME PAD "PIAGGIO GENUINE PARTS" COMMON FOR MOTO-GUZZI RANGE -GU39103400- More informationQuantity required : 2 |
||||||
|
7 |
GU98054318 - VIS More informationQuantity required : 2 |
||||||
|
8 |
GU391035005 - DISQUE More informationQuantity required : 2 |
||||||
|
10 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
11 |
GU28103260 - VIS COLLONNETTE More informationQuantity required : 1 |
||||||
|
12 |
GU95000208 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
GU92660801 - ECROU EN CAGE More informationQuantity required : 1 |
||||||
|
14 |
GU98613630 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
16 |
GU92602312 - ECROU More informationQuantity required : 2 |
||||||
|
19 |
GU92601312 - ECROU More informationQuantity required : 1 |
||||||
|
20 |
GU93180080 - BOUCHON More informationQuantity required : 2 |
||||||
|
22 |
GU98054416 - VIS M8X16 More informationQuantity required : 5 |
||||||
|
23 |
GU95004208 - RONDELLE More informationQuantity required : 7 |
||||||
|
24 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 3 |
||||||
|
25 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 5 |
||||||
|
27 |
GU98054330 - VIS More informationQuantity required : 4 |
||||||
|
29 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
|
34 |
GU27468720 - SERRURE AVEC CLES More informationQuantity required : 1 |
||||||
|
35 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
36 |
GU92630105 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
39 |
AP8150017 - RONDELLE More informationQuantity required : 4 |
||||||
|
40 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
41 |
GU98612425 - VIS More informationQuantity required : 4 |
||||||
|
42 |
GU95000208 - RONDELLE More informationQuantity required : 4 |
||||||
|
43 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
44 |
GU28666060 - PLAQUE More informationQuantity required : 1 |
||||||
|
45 |
GU92602206 - ECROU More informationQuantity required : 4 |
||||||
|
46 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
47 |
GU28109040 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
48 |
GU14494600 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
49 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
50 |
STEERING DUST COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU14517000 - More informationQuantity required : 1 |
