Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

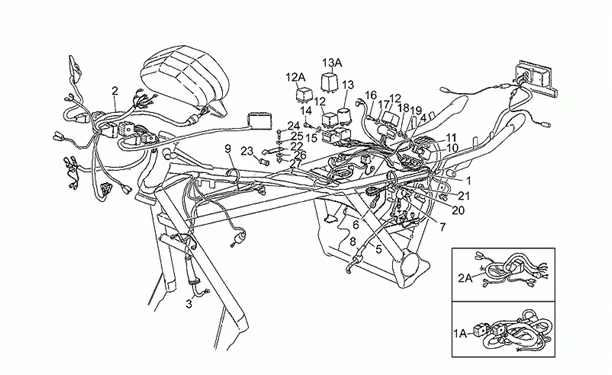

Chassis : 33.17 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.17.PNG)
2 |
GU28747261 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
GU28747278 - CABLES More informationQuantity required : 1 |
||||||
|
6 |
GU28747960 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
7 |
GU23707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
8 |
GU19707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 15 |
||||||
|
10 |
GU28743060 - PORTE-FUSIBILES CPL. More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
11 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
13 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
14 |
GU98054212 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU98054216 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
17 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 1 |
||||||
|
18 |
GU95000205 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
19 |
GU92630105 - ECROU More informationQuantity required : 1 |
||||||
|
20 |
GU98054312 - VIS More informationQuantity required : 1 |
||||||
|
21 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
22 |
GU93301313 - GUIDE CABLE More informationQuantity required : 1 |
||||||
|
23 |
GU17658260 - BAGUE More informationQuantity required : 1 |
||||||
|
24 |
GU98054216 - VIS More informationQuantity required : 1 |
||||||
|
25 |
GU95000205 - RONDELLE More informationQuantity required : 1 |
||||||
|
26 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 1 |
||||||
|
27 |
GU92630105 - ECROU More informationQuantity required : 1 |
