Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

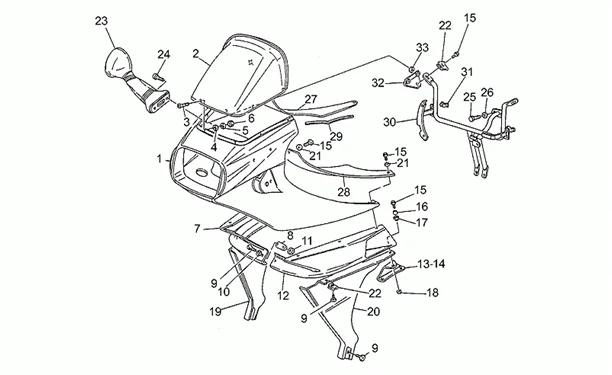

Chassis : 33.05 CARENAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.05.PNG)
2 |
GU28577278 - PARE-BRISE More informationQuantity required : 1 |
||||||
|
5 |
GU95007204 - RONDELLE More informationQuantity required : 6 |
||||||
|
6 |
GU92630104 - ECROU M4X0,7 More informationQuantity required : 6 |
||||||
|
7 |
GU28570394 - COTE More informationQuantity required : 1 |
||||||
|
9 |
GU98326016 - VIS More informationQuantity required : 6 |
||||||
|
10 |
GU66478610 - RONDELLE NYLON 6X17X1 More informationQuantity required : 4 |
||||||
|
11 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
13 |
GU285708781 - PLAQUE More informationQuantity required : 1 |
||||||
|
14 |
GU285708791 - PLAQUE More informationQuantity required : 1 |
||||||
|
15 |
GU98230620 - VIS More informationQuantity required : 8 |
||||||
|
16 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
17 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
18 |
GU92601206 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
GU95001206 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
GU28576590 - CLIP More informationQuantity required : 4 |
||||||
|
24 |
GU98822320 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
25 |
GU98084316 - VIS M6X16 More informationQuantity required : 4 |
||||||
|
26 |
GU95000206 - RONDELLE More informationQuantity required : 4 |
||||||
|
27 |
GU28576295 - T.DE BORD LAT.D More informationQuantity required : 1 |
||||||
|
29 |
GU00823932085 - PROFILO PVC NERO More informationQuantity required : 2 |
||||||
|
31 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 1 |
||||||
|
33 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 4 |
