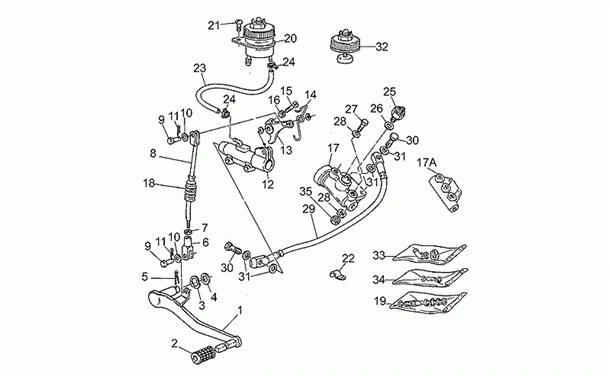

Chassis : 33.25 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.25.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
2 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
3 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 2 |
||||||
|
4 |
GU95004215 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
5 |
GU95500227 - GOUPILLE More informationQuantity required : 1 |
||||||
|
6 |
GU95740175 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
7 |
GU92690073 - ECROU More informationQuantity required : 1 |
||||||
|
8 |
GU19675000 - TIGE More informationQuantity required : 1 |
||||||
|
9 |
GU95770265 - GOUPILLE More informationQuantity required : 2 |
||||||
|
10 |
GU95129110 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.jpg)
11 |
GU95500222 - GOUPILLE More informationQuantity required : 2 |
||||||
|
12 |
GU31666990 - MAIT.CYL.FREIN AR More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
|
14 |
GU19667600 - RESSORT MAN.FERIN AR. More informationQuantity required : 1 |
||||||
|
15 |
VIS |
||||||
|
16 |
GU92602205 - ECROU More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
17 |
RACCORD FREIN |
||||||
|
18 |
GU17093850 - SOUFFLET More informationQuantity required : 1 |
||||||
|
19 |
MAINTENANCE KIT- FOR BRAKE CALIPER "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 T3, 1000 LE MANS, STRADA, V50, V65 -GU17659350- More informationQuantity required : 1 |
||||||
|
20 |
RESERVOIR DU FREIN |
||||||
|
21 |
GU98326009 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU933011755 - CAVALIER More informationQuantity required : 1 |
||||||
|
23 |
GU00823950050 - T GOMMA 5X9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
24 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
|
25 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 1980>2000 -GU63657000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
26 |
GU25656100 - GARNITURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
27 |
GU98084316 - VIS M6X16 More informationQuantity required : 2 |
||||||
|
28 |
GU95000206 - RONDELLE More informationQuantity required : 4 |
||||||
|
29 |
TUYAU DU FREIN |
||||||
|
30 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 2 |
||||||
|
31 |
GU25656100 - GARNITURE More informationQuantity required : 5 |
||||||
|
32 |
COUVERCLE |
||||||
|
33 |
GU19659500 - GR.REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
34 |
GU19659600 - KIT DE GOUIJONS LEV More informationQuantity required : 1 |
||||||
|
35 |
GU92602206 - ECROU More informationQuantity required : 2 |
