Vehicle Exploded View - GILERA GSM 50 MY 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

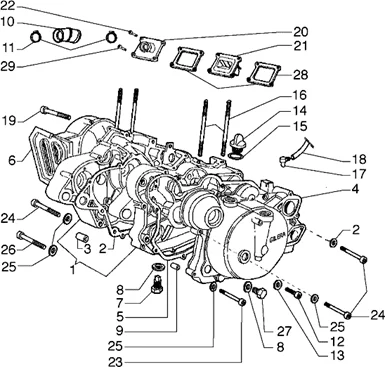

Moteur : T2 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/669/GSM_MY_2001_T2.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/5/img/64745.jpg)
2 |
CENTRAL CRANKCASE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1997>2003 -00H03000031- More informationQuantity required : 2 |
||||||
3 |
00H03010361 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
4 |
00H03009881 - SCTO.TAPA CART.DR.G.ZIRC.GILE. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/7/img/64747.jpg)
5 |
GASKET FOR CLUTCH HOUSING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H03000141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/5/img/69505.jpg)
7 |
OIL DRAIN CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847237- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/6/img/69506.jpg)
8 |
O'RING GASKET FOR OIL DRAIN PLUG "PIAGGIO GENUINE PART" 350 BEVERLY, X10/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847238- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
9 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847241- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/1/img/64711.jpg)
10 |
00H02504891 - ECROU ANNEAU CARB.PG. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
11 |
00H03800451 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
13 |
847239 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
15 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 1 |
||||||
|
16 |
00003130050 - GOUJON DE FIXE CYLINDRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/6/img/69416.jpg)
17 |
OIL BREATHER TUBE JOINT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847024- More informationQuantity required : 1 |
||||||
|
18 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
|
18 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
19 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/9/img/149169.JPG)
20 |
1A010664 - RACCORD D'ADMISSION More informationQuantity required : 1 |
||||||
|
20 |
1A010664 - RACCORD D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/7/img/149117.JPG)
21 |
1A003630 - SOUPAPE LAMELLES CPL More informationQuantity required : 1 |
||||||
|
21 |
1A003630 - SOUPAPE LAMELLES CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
22 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
||||||
|
22 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
23 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/6/7/img/64067.jpg)
24 |
SCREW - FOR CRANKCASE (M6 100X40) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03002091- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
25 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/6/img/64746.jpg)
26 |
SCREW - FOR CRANKCASE (6X50) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00H03000091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/5/8/img/204758.JPG)
27 |
1A021939 - VIS TêTE CYLINDRIQUE à SIX PANS CREUX More informationQuantity required : 1 |
||||||
|
27 |
1A021939 - VIS TêTE CYLINDRIQUE à SIX PANS CREUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/1/img/69461.jpg)
28 |
REED VALVE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847091- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.JPG)
29 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
29 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
