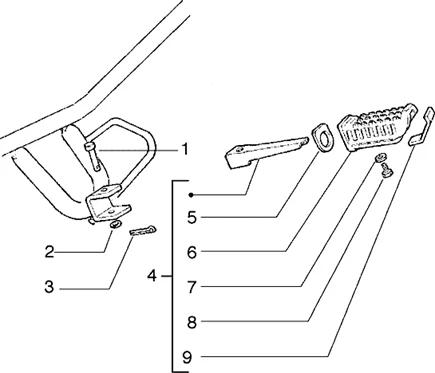

Vehicle Exploded View - GILERA GSM 50 MY 2001 GILERA

Châssis : T17 REPOSE-PIED PASSAGER
Repose-pied passager
Search
965576 - PIVOT

1
P2R reference P2R reference 93999
Maker reference Maker reference 965576

965576 - PIVOT

More information

Quantity required : 2
006177 - RONDELLE S00617700

2
P2R reference P2R reference 63806
Maker reference Maker reference 0061775

006177 - RONDELLE S00617700

More information

Quantity required : 2
003208 - GOUPILLE

3
P2R reference P2R reference 63782
Maker reference Maker reference 0032085

003208 - GOUPILLE

More information

Quantity required : 2
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 GSM, HAK, ZULU -8136841-

4
P2R reference P2R reference 92392
Maker reference Maker reference 8136841

LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 GSM, HAK, ZULU -8136841-

More information

Quantity required : 1
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 GSM, HAK, ZULU -8136851-

4
P2R reference P2R reference 92393
Maker reference Maker reference 8136851

RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 GSM, HAK, ZULU -8136851-

More information

Quantity required : 1
965502 - ENTRETOISE

7
P2R reference P2R reference 93998
Maker reference Maker reference 965502

965502 - ENTRETOISE

More information

Quantity required : 2
031086 - VIS S03108600

8
P2R reference P2R reference 65637
Maker reference Maker reference 0310865

031086 - VIS S03108600

More information

Quantity required : 2
