Vehicle Exploded View - GILERA GSM 50 MY 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

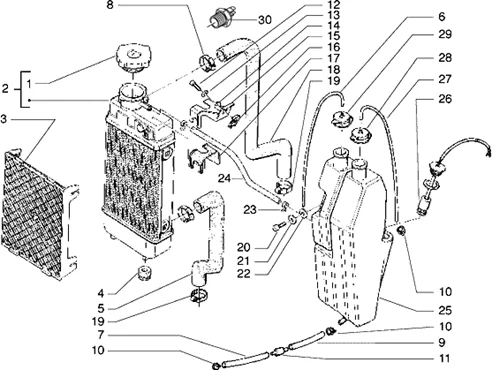

Moteur : T14 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/669/GSM_MY_2001_T14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/4/5/2/img/92452.jpg)
1 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -814371- More informationQuantity required : 1 |
||||||
2 |
942951 - RADIATEUR More informationQuantity required : 1 |
||||||
|
7 |
813225 - TUYAU More informationQuantity required : 1 |
||||||
|
8 |
812126 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
813225 - TUYAU More informationQuantity required : 1 |
||||||
|
11 |
298990 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
12 |
810911 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
13 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
16 |
006966 - RONDELLE S00696600 More informationQuantity required : 1 |
||||||
|
19 |
812126 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
21 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
22 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/0/5/img/93605.jpg)
25 |
EXPANSION TANK "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU, EAGLET 1998>2005 -941120- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/0/img/67310.jpg)
30 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 -584715- More informationQuantity required : 1 |
