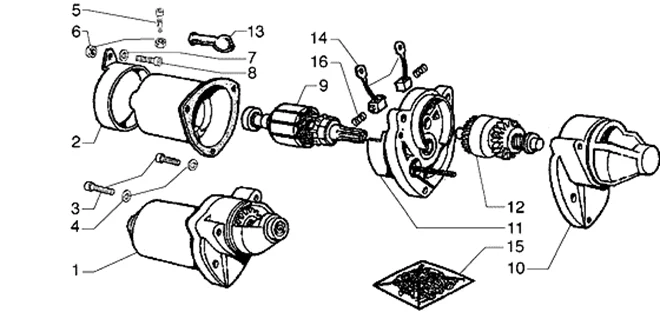

Vehicle Exploded View - GILERA GSM 50 MY 2001 GILERA

Moteur : T10 DEMARREUR ELECTRIQUE
Demarreur electrique
Search
00H03910201 - ENSEMBLE MOTEUR DEMARREUR

1
P2R reference P2R reference 64881
Maker reference Maker reference 00H03910201

00H03910201 - ENSEMBLE MOTEUR DEMARREUR

More information

Quantity required : 1
00H03910881 - BRIDE FIXATION MOTEUR ELECTRIQ

2
P2R reference P2R reference 64882
Maker reference Maker reference 00H03910881

00H03910881 - BRIDE FIXATION MOTEUR ELECTRIQ

More information

Quantity required : 1
00000004645 - VIS

3
P2R reference P2R reference 63573
Maker reference Maker reference 000000046455

00000004645 - VIS

More information

Quantity required : 2
00442060002 - RONDELLE A RESSORT D6

4
P2R reference P2R reference 63790
Maker reference Maker reference 004420600025

00442060002 - RONDELLE A RESSORT D6

More information

Quantity required : 2
00004062200 - VIS TETE ALLEN 6M100X22D912

5
P2R reference P2R reference 63647
Maker reference Maker reference 000040622005

00004062200 - VIS TETE ALLEN 6M100X22D912

More information

Quantity required : 1
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

6
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

More information

Quantity required : 1
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

7
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

More information

Quantity required : 1
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

8
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

More information

Quantity required : 1
00H03901891 - INDUIT DE DEMARREUR

9
P2R reference P2R reference 64879
Maker reference Maker reference 00H03901891

00H03901891 - INDUIT DE DEMARREUR

More information

Quantity required : 1
ELECTRIC STARTER SUPPORT "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU -00H03901901-

10
P2R reference P2R reference 64880
Maker reference Maker reference 00H03901901

ELECTRIC STARTER SUPPORT "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU -00H03901901-

More information

Quantity required : 1
00H03901851 - PIGNON DE DEMARREUR

12
P2R reference P2R reference 64878
Maker reference Maker reference 00H03901851

00H03901851 - PIGNON DE DEMARREUR

More information

Quantity required : 1
00F03900961 - RESSORT DE BALAI

16
P2R reference P2R reference 63920
Maker reference Maker reference 00F03900961

00F03900961 - RESSORT DE BALAI

More information

Quantity required : 1
