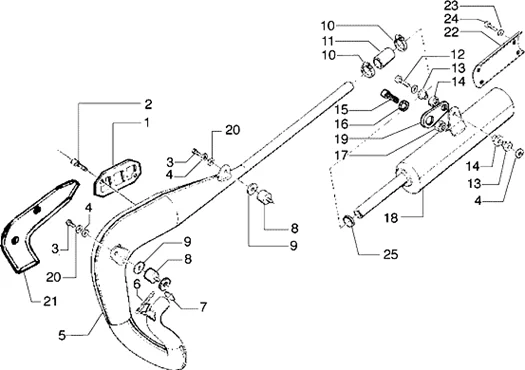

Vehicle Exploded View - GILERA GSM 50 MY 2001 GILERA

Moteur : T13 SILENCIEUX
Silencieux
Search
433800 - BOULON

2
P2R reference P2R reference 66440
Maker reference Maker reference 433800

433800 - BOULON

More information

Quantity required : 2
598920 - BOULON

3
P2R reference P2R reference 67370
Maker reference Maker reference 598920

598920 - BOULON

More information

Quantity required : 2
003058 - RONDELLE S00305800

4
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 3
814330 - SILENCIEUX

5
P2R reference P2R reference 92445
Maker reference Maker reference 814330

814330 - SILENCIEUX

More information

Quantity required : 1
811135 - RESSORT

6
P2R reference P2R reference 92302
Maker reference Maker reference 811135

811135 - RESSORT

More information

Quantity required : 2
809340 - SILENBLOC

8
P2R reference P2R reference 92280
Maker reference Maker reference 809340

809340 - SILENBLOC

More information

Quantity required : 2
030074 - BOULON S03007400

12
P2R reference P2R reference 65613
Maker reference Maker reference 0300745

030074 - BOULON S03007400

More information

Quantity required : 1
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165-

15
P2R reference P2R reference 66335
Maker reference Maker reference 319165

SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165-

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

16
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 1
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

17
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1
814330 - SILENCIEUX

18
P2R reference P2R reference 92445
Maker reference Maker reference 814330

814330 - SILENCIEUX

More information

Quantity required : 1
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU -814334-

18
P2R reference P2R reference 92447
Maker reference Maker reference 814334

TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU -814334-

More information

Quantity required : 1
814331 - SILENCIEUX

18
P2R reference P2R reference 92446
Maker reference Maker reference 814331

814331 - SILENCIEUX

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

20
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 4
814417 - JOINT

25
P2R reference P2R reference 92460
Maker reference Maker reference 814417

814417 - JOINT

More information

Quantity required : 1
