Vehicle Exploded View - GILERA GSM 50 MY 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

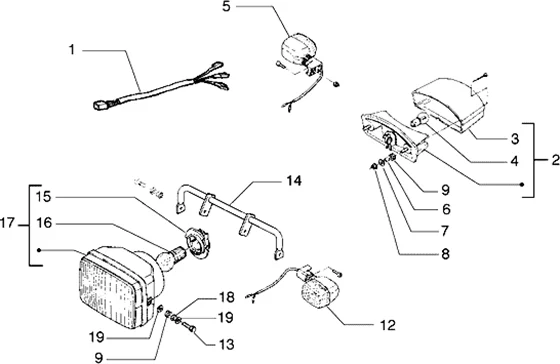

Connexions électriques : T35 FEUX ET CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/669/GSM_MY_2001_T35.PNG)
1 |
813145 - GR FAISCEAU More informationQuantity required : 1 |
||||||
|
2 |
811552 - FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
4 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/3/8/1/img/92381.jpg)
5 |
813574 - CLIGNOT G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
7 |
013880 - RONDELLE More informationQuantity required : 4 |
||||||
|
8 |
810511 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/5/3/img/74753.jpg)
9 |
SILENT BLOC FOR IGINTION COIL SUPPORT "PIAGGIO GENUINE PART" 125 VESPA PX -141590- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/3/8/2/img/92382.jpg)
12 |
813575 - CLIGNOTANT D More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
13 |
031086 - VIS S03108600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.JPG)
16 |
231215 - AMPOULE 12V-35/35W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
18 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
19 |
003056 - RONDELLE More informationQuantity required : 4 |
