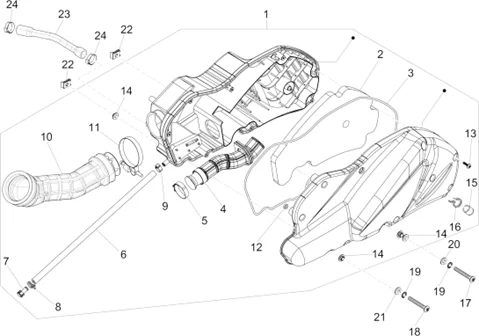

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014 GILERA

Moteur : 01.45 FILTRE À AIR
Filtre à air
Search
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -873151-

1
P2R reference P2R reference 70466
Maker reference Maker reference 873151

AIR FILTER HOUSING "PIAGGIO GENUINE PART" 400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -873151-

More information

Quantity required : 1
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P-

2
P2R reference P2R reference 156970
Maker reference Maker reference 8292580P

AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P-

More information

Quantity required : 1
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259-

3
P2R reference P2R reference 68833
Maker reference Maker reference 829259

GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259-

More information

Quantity required : 1
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829543-

4
P2R reference P2R reference 68856
Maker reference Maker reference 829543

AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829543-

More information

Quantity required : 1
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910-

5
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910-

More information

Quantity required : 1
1R000162 - TUYAU

6
P2R reference P2R reference 65920
Maker reference Maker reference 1R000162

1R000162 - TUYAU

More information

Quantity required : 1
833965 - BOUCHON

7
P2R reference P2R reference 69092
Maker reference Maker reference 833965

833965 - BOUCHON

More information

Quantity required : 1
CM002908 - COLLIER

8
P2R reference P2R reference 72894
Maker reference Maker reference CM002908

CM002908 - COLLIER

More information

Quantity required : 1
CM001913 - COLLIER

9
P2R reference P2R reference 72874
Maker reference Maker reference CM001913

CM001913 - COLLIER

More information

Quantity required : 1
THROTTLE BODY HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -849589-

10
P2R reference P2R reference 69606
Maker reference Maker reference 849589

THROTTLE BODY HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -849589-

More information

Quantity required : 1
260918 - BRIDE

11
P2R reference P2R reference 66046
Maker reference Maker reference 260918

260918 - BRIDE

More information

Quantity required : 1
965502 - ENTRETOISE

12
P2R reference P2R reference 93998
Maker reference Maker reference 965502

965502 - ENTRETOISE

More information

Quantity required : 1
SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

13
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

More information

Quantity required : 9
830056 - BAGUE

14
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 4
CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831-

15
P2R reference P2R reference 68701
Maker reference Maker reference 827831

CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831-

More information

Quantity required : 1
CM002908 - COLLIER

16
P2R reference P2R reference 72894
Maker reference Maker reference CM002908

CM002908 - COLLIER

More information

Quantity required : 1
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

17
P2R reference P2R reference 65448
Maker reference Maker reference 018640

SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

More information

Quantity required : 1
015761 - VIS

18
P2R reference P2R reference 65394
Maker reference Maker reference 015761

015761 - VIS

More information

Quantity required : 1
012533 - RONDELLE

19
P2R reference P2R reference 65345
Maker reference Maker reference 012533

012533 - RONDELLE

More information

Quantity required : 2
016670 - RONDELLE S01667000

20
P2R reference P2R reference 65425
Maker reference Maker reference 016670

016670 - RONDELLE S01667000

More information

Quantity required : 1
003056 - RONDELLE

21
P2R reference P2R reference 63777
Maker reference Maker reference 003056

003056 - RONDELLE

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

22
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 2
AIR FILTER BREATHER HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -840743-

23
P2R reference P2R reference 69163
Maker reference Maker reference 840743

AIR FILTER BREATHER HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -840743-

More information

Quantity required : 1
COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907-

24
P2R reference P2R reference 72868
Maker reference Maker reference CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907-

More information

Quantity required : 2
