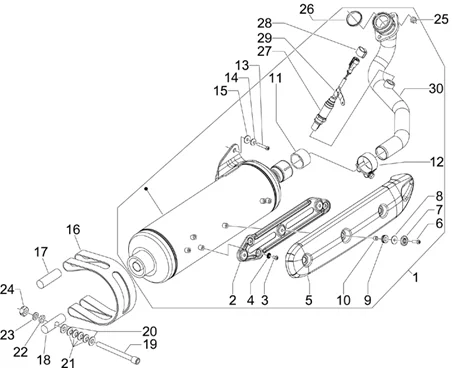

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)
Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/172/Fuoco_500_4T-4V_ie_E3_LT_2013-2014_01.42.jpg)
1 |
EXHAUST "PIAGGIO GENUINE PART" 400 MP3/GILERA 500 FUOCO -1A0013155- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/4/5/img/93045.JPG)
2 |
846757 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/0/img/69070.jpg)
3 |
833569 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
4 |
834951 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/0/6/img/92906.jpg)
5 |
EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, X10, X8, X9, X-EVO/GILERA 500 FUOCO -833910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/8/img/69098.jpg)
6 |
834038 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
7 |
EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/0/img/92910.jpg)
8 |
834039 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/1/img/92911.jpg)
9 |
834040 - PASSE CABLES More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/2/img/92912.jpg)
10 |
834041 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/8/img/70558.jpg)
11 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" 350 BEVERLY, X10, 400-500 MP3, BEVERLY, X-EVO/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA/GILERA 500 NEXUS, FUOCO, 850 GP -8749465- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/9/img/70559.jpg)
12 |
SILENCER CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 350-400-500/MOTO-GUZZI V7, V9/GILERA GP 800/APRILIA 850 SRV -874957- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
13 |
599208 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/7/img/69157.jpg)
15 |
840569 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/9/2/img/67392.jpg)
16 |
FLANGE FOR EXHAUST "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS 400-500 CC -599533- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/1/0/img/82510.jpg)
17 |
EXHAUST PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -599391- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/1/1/img/82511.jpg)
18 |
NUT - FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -599392- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/5/img/69235.jpg)
19 |
SCREW - HEX SOCKET SREW (8X80) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -842502- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/8/4/img/69384.jpg)
20 |
846163 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
21 |
007608 - RONDELLE S00760800 More informationQuantity required : 4 |
||||||
|
22 |
B011531 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
23 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
24 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
25 |
NUT - FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015341- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/2/img/68732.jpg)
26 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -828194- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/5/img/67855.jpg)
27 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -639806- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/6/img/66006.jpg)
29 |
HOSE CLAMP "PIAGGIO GENUINE PART" X9 500, MP3 400-500/ GILERA FUOCO, NEXUS 250-500 -253293- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/7/1/img/94571.jpg)
30 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 400-500 MP3/GILERA 500 FUOCO -1A007654- More informationQuantity required : 1 |
All the exploded views of this vehicle
-
