Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

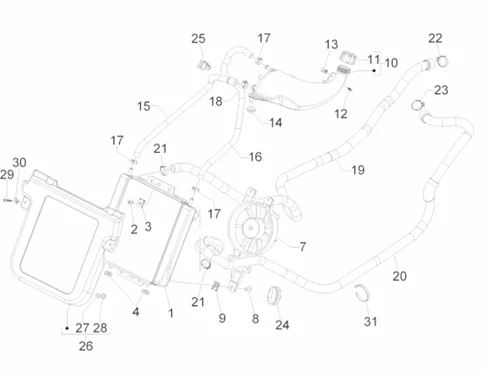

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/172/Fuoco_500_4T-4V_ie_E3_LT_2013-2014_02.55.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/4/1/img/139841.jpg)
1 |
COOLING RADIATOR "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -1B001908- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
4 |
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/4/img/67244.jpg)
7 |
COOLING FAN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, X-EVO, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58211R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
8 |
CM179301 - VIS More informationQuantity required : 3 |
||||||
|
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/8/8/6/img/87886.jpg)
10 |
COOLANT TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -653463- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
11 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 1 |
||||||
|
14 |
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/2/6/img/84626.jpg)
15 |
COOLANT PIPE - FROM RADIATOR TO LOWER TANK "PIAGGIO GENUINE PARTS" 125-250-300-350-400-500 MP3 -622582- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/2/5/img/84625.jpg)
16 |
COOLANT PIPE - FROM RADIATOR TO LOWER TANK "PIAGGIO GENUINE PARTS" 125-250-300-350-400-500 MP3 -622581- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
17 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
18 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/5/7/img/78257.jpg)
19 |
COOLANT HOSE-FROM RADIATOR TO PUMP "PIAGGIO GENUINE PART" 400-500 MP3/GILERA 500 FUOCO -1B001992- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/9/7/img/87297.jpg)
20 |
COOLANT HOSE - HEAD TO RADIATOR "PIAGGIO GENUINE PART" 400-500 MP3/GILERA 500 FUOCO -652619- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
21 |
COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
22 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
23 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001915- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
24 |
CM006902 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
25 |
CM006903 - RESSORT More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/7/7/img/87977.jpg)
26 |
RADIATOR FRAME "PIAGGIO GENUINE PART" GILERA 500 FUOCO -653709- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
27 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER -479882- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
28 |
LOCKING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -230359- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
29 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
|
30 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
31 |
257134 - COLLIER More informationQuantity required : 1 |
