Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

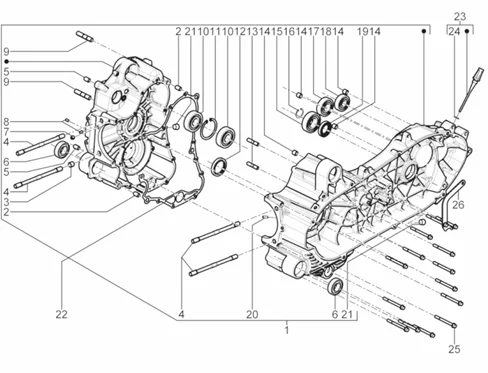

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/172/Fuoco_500_4T-4V_ie_E3_LT_2013-2014_01.05.jpg)
1 |
CM1566040A - CARTER More informationQuantity required : 1 |
||||||
|
1 |
CM1566050B - CARTER More informationQuantity required : 1 |
||||||
|
1 |
CM1566040C - CARTER More informationQuantity required : 1 |
||||||
|
1 |
CM1566040D - CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
2 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
3 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
4 |
1A003631R - GOUJON More informationQuantity required : 4 |
||||||
|
5 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/9/img/68609.jpg)
6 |
CRANKCASE BEARING (20X42X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -82656R- More informationQuantity required : 2 |
||||||
|
7 |
825649 - GICLEUR CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.JPG)
8 |
484993 - PIVOT DE CENTR. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/4/img/109084.jpg)
9 |
1A003080 - GOUJON M10X1.25X51 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/0/img/68610.jpg)
10 |
BEARING FOR INTERMEDIATE TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -82660R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
11 |
006652 - CIRCLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/2/img/70512.jpg)
12 |
GASKET RING- ENGINE CRANKCASE (35X47X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -873932- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/7/7/img/93077.jpg)
13 |
848893 - GOUJON CARTER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
14 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/6/img/68526.jpg)
15 |
TRANSMISSION BEARING (52X25X15) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -825233- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
16 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
17 |
BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
18 |
BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/1/img/70511.jpg)
19 |
SEAL RING GASKET- TRANSMISSION (25X40X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR 400-500 -873931- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
20 |
484034 - GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/4/img/70444.jpg)
22 |
GASKET FOR ENGINE CRANKCASE"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -872909- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
23 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
24 |
827085 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/4/img/72714.jpg)
25 |
B016762 - VIS M6X65 More informationQuantity required : 14 |
||||||
|
26 |
1A002618 - PATTE More informationQuantity required : 1 |
