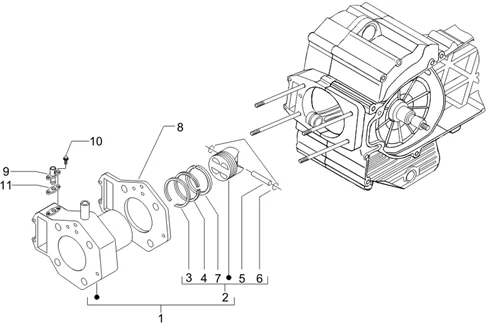

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014 GILERA

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
Groupe cylindre-piston-axe
Search
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/APRILIA 500 SCARABEO/GILERA 500 FUOCO -1A001833-

1
P2R reference P2R reference 142289
Maker reference Maker reference B019019

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/APRILIA 500 SCARABEO/GILERA 500 FUOCO -1A001833-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.1) -B0190180001-

2
P2R reference P2R reference 72793
Maker reference Maker reference B0190180001

PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.1) -B0190180001-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.2) -B0190180002-

2
P2R reference P2R reference 72794
Maker reference Maker reference B0190180002

PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.2) -B0190180002-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLET CAT.3) -B0190180003-

2
P2R reference P2R reference 72795
Maker reference Maker reference B0190180003

PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLET CAT.3) -B0190180003-

More information

Quantity required : 1
PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.4) -B0190180004-

2
P2R reference P2R reference 72796
Maker reference Maker reference B0190180004

PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.4) -B0190180004-

More information

Quantity required : 1
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" 500 FUOCO, BEVERLY, MP3, X10 -833450-

3
P2R reference P2R reference 69061
Maker reference Maker reference 833450

PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" 500 FUOCO, BEVERLY, MP3, X10 -833450-

More information

Quantity required : 1
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 500 FUOCO, BEVERLY, MP3, X10 -833451-

4
P2R reference P2R reference 69062
Maker reference Maker reference 833451

OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 500 FUOCO, BEVERLY, MP3, X10 -833451-

More information

Quantity required : 1
827820 - AXE

5
P2R reference P2R reference 68698
Maker reference Maker reference 827820

827820 - AXE

More information

Quantity required : 1
828116 - CIRCLIPS

6
P2R reference P2R reference 68729
Maker reference Maker reference 828116

828116 - CIRCLIPS

More information

Quantity required : 2
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO -833452-

7
P2R reference P2R reference 69063
Maker reference Maker reference 833452

OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO -833452-

More information

Quantity required : 1
CYLINDER BASE GASKET- 0,8MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -830275-

8
P2R reference P2R reference 68903
Maker reference Maker reference 830275

CYLINDER BASE GASKET- 0,8MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -830275-

More information

Quantity required : 1
CYLINDER BASE GASKET- (0,6MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830276-

8
P2R reference P2R reference 68904
Maker reference Maker reference 830276

CYLINDER BASE GASKET- (0,6MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830276-

More information

Quantity required : 1
CYLINDER BASE GASKET- 0,4MM "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830277-

8
P2R reference P2R reference 68905
Maker reference Maker reference 830277

CYLINDER BASE GASKET- 0,4MM "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830277-

More information

Quantity required : 1
82650R - TENDEUR

9
P2R reference P2R reference 204079
Maker reference Maker reference 289919

82650R - TENDEUR

More information

Quantity required : 1
82650R - TENDEUR

9
P2R reference P2R reference 204079
Maker reference Maker reference 82650R

82650R - TENDEUR

More information

Quantity required : 1
B016777 - VIS

10
P2R reference P2R reference 72723
Maker reference Maker reference B016777

B016777 - VIS

More information

Quantity required : 2
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928-

11
P2R reference P2R reference 69546
Maker reference Maker reference 847928

TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928-

More information

Quantity required : 1
