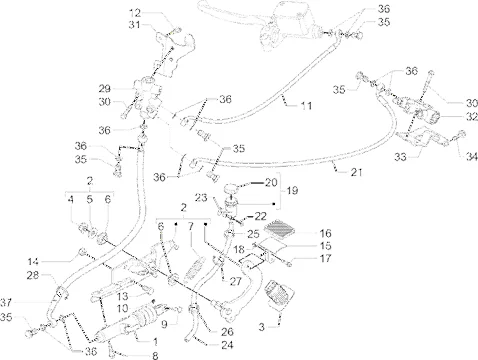

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014

	P2R reference	95769
	Maker reference	CM082901

REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 300-400-500 MP3 -CM082901-

	P2R reference	89925
	Maker reference	665581

665581 - SUPPORT PEDALE FREIN

	P2R reference	90642
	Maker reference	672133

672133 - SOUFFLET

	P2R reference	63765
	Maker reference	002440

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

	P2R reference	109020
	Maker reference	1A000427

1A000427 - RONDELLE PLATE

	P2R reference	87106
	Maker reference	650636

650636 - JOINT

	P2R reference	87113
	Maker reference	650670

650670 - RESSORT

	P2R reference	65447
	Maker reference	018639

018639 - VIS

	P2R reference	87110
	Maker reference	650651

650651 - PIVOT

	P2R reference	65353
	Maker reference	012761

012761 - GOUPILLE S01276100

	P2R reference	87125
	Maker reference	650722

650722 - CANALISATEUR GAU.

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	65644
	Maker reference	031116

031116 - BOULON

	P2R reference	110629
	Maker reference	709052

709052 - ECROU

	P2R reference	87120
	Maker reference	650711

650711 - FOURCHE PEDALE

	P2R reference	76635
	Maker reference	228793

228793 - EMBOUT PEDALE

	P2R reference	67257
	Maker reference	582469

582469 - VIS

	P2R reference	65818
	Maker reference	195482

195482 - ECROU

	P2R reference	77469
	Maker reference	274598

MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598

	P2R reference	79623
	Maker reference	498431

498431 - BOUCHON RESERV LOOCK

	P2R reference	75936
	Maker reference	1C000117

1C000117 - CANALISATEUR GAU.

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	72925
	Maker reference	CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409-

	P2R reference	87155
	Maker reference	650772

650772 - TUYAU HUILE

	P2R reference	72892
	Maker reference	CM002905

CM002905 - COLLIER EX 194011

	P2R reference	72893
	Maker reference	CM002907

CM002907 - COLLIER

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	95766
	Maker reference	CM082803

CM082803 - VOLET REG.PRESS.

	P2R reference	151716
	Maker reference	1A011120

1A011120 - VIS

	P2R reference	151716
	Maker reference	B016763

1A011120 - VIS

	P2R reference	78234
	Maker reference	2B000823

2B000823 - PATTE

	P2R reference	95765
	Maker reference	CM082802

CM082802 - VOLET REG.PRESS.

	P2R reference	87105
	Maker reference	650625

650625 - SUPPORT

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

	P2R reference	87123
	Maker reference	650720

650720 - CANALISATEUR GAU.
