Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

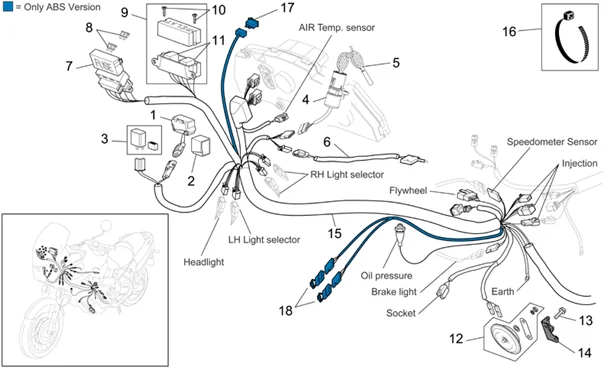

Chassis : 28.40 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.JPG)
1 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
2 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
3 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
|
4 |
AP8104941 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.JPG)
5 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/9/img/71339.jpg)
6 |
MICROSWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI GRISO, NORGE, BREVA, STELVIO/APRILIA 1000 CAPONORD -AP8113998- More informationQuantity required : 1 |
||||||
|
7 |
AP8124274 - BO?TE A FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.JPG)
8 |
CM225715 - FUSIBLE More informationQuantity required : 8 |
||||||
|
9 |
AP8124293 - SUPPORT RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
10 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
11 |
RELAY+RESISTANCE 12V 30A "PIAGGIO GENUINE PART" 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD -1D001636- More informationQuantity required : 2 |
||||||
|
12 |
AP8127509 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
13 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 1 |
||||||
|
14 |
AP8134678 - PLAQUETTE; More informationQuantity required : 1 |
||||||
|
15 |
AP8127298 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
15 |
AP8127468 - CABLAGGIO PRINCIPALE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
16 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 20 |
||||||
|
17 |
AP8127470 - PULSANTE More informationQuantity required : 1 |
||||||
|
18 |
AP8127491 - DIODO DI CONTROLLO 6A More informationQuantity required : 2 |
