Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

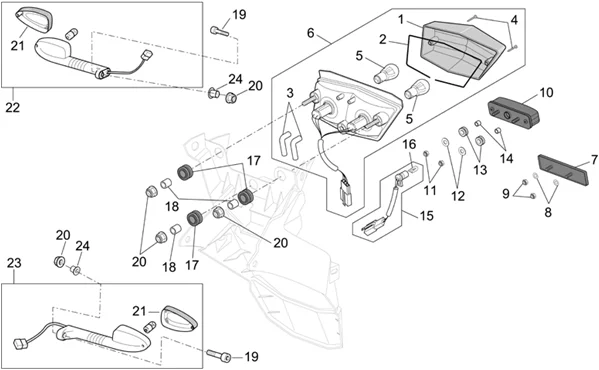

Chassis : 28.39 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.39.PNG)
1 |
AP8127170 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
2 |
AP8127166 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
AP8127171 - PIPETTE DE VENTILATION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
5 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953- More informationQuantity required : 2 |
||||||
|
6 |
AP8124583 - FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
7 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
8 |
AP8150158 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
9 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
|
10 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 RS, 1000 CAPONORD, 125-250-400-500 ATLANTIC/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8212702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
11 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
12 |
AP8150382 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
13 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
AP8221036 - BAGUE 5,3X8X7,1 More informationQuantity required : 2 |
||||||
|
15 |
AP8127072 - CABLAGE LUMIERE PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
16 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
17 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
18 |
AP8221017 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
19 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
20 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/6/img/71606.jpg)
21 |
LENS FOR FLASHER "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8127552- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/5/img/71605.jpg)
22 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817515- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/4/img/71604.jpg)
23 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.JPG)
24 |
AP8121929 - DOUILLE CLIGNOTANTS; More informationQuantity required : 2 |
