Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

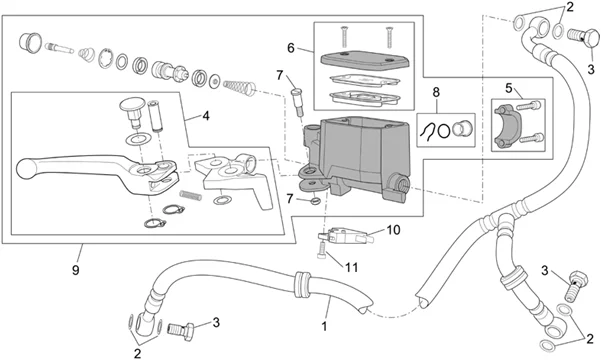

Chassis : 28.21 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.21.PNG)
1 |
AP8113807 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
2 |
AP8113004 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
3 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/8/2/img/71082.jpg)
4 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1200 NORGE, GRISO, BREVA,1200 SPORT, STELVIO, 940 BELLAGIO/APRILIA 650 PEGASO, 1000 CAPONOR, FUTURA -981050- More informationQuantity required : 1 |
||||||
|
5 |
AP8113993 - CAVALIER; More informationQuantity required : 1 |
||||||
|
6 |
AP8113994 - BOUCHON RESERVOIR; More informationQuantity required : 1 |
||||||
|
7 |
AP8113995 - GOUJON DE LEVIER; More informationQuantity required : 1 |
||||||
|
8 |
AP8113063 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
9 |
854602 - MATRE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/7/img/72327.jpg)
10 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI/APRILIA 50-125 MOJITO, 650 PEGASO, 1000 CAPONORD -AP8224192- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
11 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
