Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

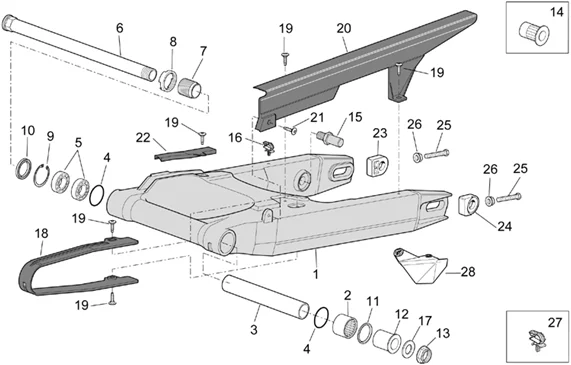

Chassis : 28.07 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.07.PNG)
1 |
AP8146876 - FORCELLONE FINITO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/9/img/71269.JPG)
2 |
AP8110066 - CAGE A ROULEAUX More informationQuantity required : 1 |
|||||||||
|
3 |
AP8121202 - ENTRETOISE INTERNE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
4 |
AP8144048 - JOINT TORIQUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/0/img/45830.jpg)
5 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV, 750-900 SHIVER, FUTURA, CAPONORD -AP8110079- More informationQuantity required : 2 |
|||||||||
|
6 |
AP8135923 - PIVOT FOURCHE AR; More informationQuantity required : 1 |
|||||||||
|
7 |
AP8121200 - DOUILLE DE REGLAGE More informationQuantity required : 1 |
|||||||||
|
8 |
AP8121201 - BAGUE PIVOT FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
9 |
AP8121204 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
|||||||||
|
10 |
AP8144006 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.JPG)
11 |
GASKET RING FOR SWINGING ARM AXLE (LEFT) "PIAGGIO GENUINE PART" APRILIA CAPONORD 1200 2015>2017, DORSODURO 750-900-1200 2010>2017, RSV4 1000 2009>2018 -AP8144005- More informationQuantity required : 1 |
|||||||||
|
12 |
AP8121203 - DOU.INT.TIGE FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
13 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
|||||||||
|
14 |
AP8104390 - RIVET FILETE; More informationQuantity required : 1 |
|||||||||
|
15 |
AP8146388 - TIGE BUTEE PLAQ.FREIN; More informationQuantity required : 1 |
|||||||||
|
16 |
AP8221310 - PASSE-CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.JPG)
17 |
AP8125687 - RONDELLE AXE ROUE AR; More informationQuantity required : 1 |
|||||||||
|
18 |
AP8144168 - GALET GUIDE-CHA?NE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 5 |
|||||||||
|
20 |
AP8139631 - CARTER CHA?NE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
21 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 1 |
|||||||||
|
22 |
AP8134676 - BRIDE; More informationQuantity required : 1 |
|||||||||
|
23 |
AP8144220 - PATIN GUIDE-CHA?NE D More informationQuantity required : 1 |
|||||||||
|
24 |
AP8144221 - PATIN GUIDE-CHA?NE G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
25 |
AP8152305 - VIS REGLAGE T-CHA?NE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.JPG)
26 |
2B004511 - ECROU More informationQuantity required : 2 |
|||||||||
|
26 |
2B004511 - ECROU More informationQuantity required : 2 |
|||||||||
|
28 |
AP8144321 - GALET GUIDE-CHA?NE More informationQuantity required : 1 |
|||||||||
