Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007 APRILIA

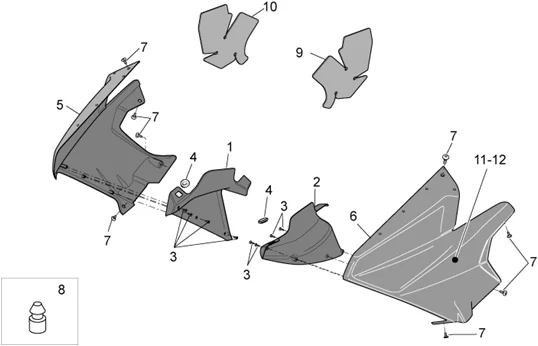

Chassis : 28.10 CARROSSERIE AV. II
Carrosserie av. II
Search
RIGHT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007 -AP8149293-

1
P2R reference P2R reference 50603
Maker reference Maker reference AP8149293

RIGHT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007 -AP8149293-

More information

Quantity required : 1
LEFT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007 -AP8149294-

2
P2R reference P2R reference 50604
Maker reference Maker reference AP8149294

LEFT AIR DUCT "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007 -AP8149294-

More information

Quantity required : 1
AP8150444 - VIS TARAUD POUR PLAST. INOX

3
P2R reference P2R reference 71887
Maker reference Maker reference AP8150444

AP8150444 - VIS TARAUD POUR PLAST. INOX

More information

Quantity required : 8
AP8220162 - CAOUTCHOUC

4
P2R reference P2R reference 72272
Maker reference Maker reference AP8220162

AP8220162 - CAOUTCHOUC

More information

Quantity required : 2
AP8179382 - LATERALE CAR.DX V.BIA.VE.N/DEC

5
P2R reference P2R reference 54497
Maker reference Maker reference AP8179382

AP8179382 - LATERALE CAR.DX V.BIA.VE.N/DEC

More information

Quantity required : 1
AP8178978 - LATERALE CARENA DX V.NERO APR.

5
P2R reference P2R reference 54253
Maker reference Maker reference AP8178978

AP8178978 - LATERALE CARENA DX V.NERO APR.

More information

Quantity required : 1
AP8178426 - LATERALE CARENA DX VERNICIATO

5
P2R reference P2R reference 54016
Maker reference Maker reference AP8178426

AP8178426 - LATERALE CARENA DX VERNICIATO

More information

Quantity required : 1
AP8178405 - LATERALE CARENA DX V.GRIGIO D.

5
P2R reference P2R reference 54001
Maker reference Maker reference AP8178405

AP8178405 - LATERALE CARENA DX V.GRIGIO D.

More information

Quantity required : 1
AP8178393 - LATERALE CARENA DX V.BLU HIL.

5
P2R reference P2R reference 53991
Maker reference Maker reference AP8178393

AP8178393 - LATERALE CARENA DX V.BLU HIL.

More information

Quantity required : 1
AP8179383 - LATERALE CAR.SX V.BIA.VE.N/DEC

6
P2R reference P2R reference 54498
Maker reference Maker reference AP8179383

AP8179383 - LATERALE CAR.SX V.BIA.VE.N/DEC

More information

Quantity required : 1
AP8178979 - LATERALE CARENA SX V.NERO APR.

6
P2R reference P2R reference 54254
Maker reference Maker reference AP8178979

AP8178979 - LATERALE CARENA SX V.NERO APR.

More information

Quantity required : 1
AP8178427 - LATERALE CARENA SX VERNICIATO

6
P2R reference P2R reference 54017
Maker reference Maker reference AP8178427

AP8178427 - LATERALE CARENA SX VERNICIATO

More information

Quantity required : 1
AP8178406 - LATERALE CARENA SX V.GRIGIO D.

6
P2R reference P2R reference 54002
Maker reference Maker reference AP8178406

AP8178406 - LATERALE CARENA SX V.GRIGIO D.

More information

Quantity required : 1
AP8178394 - LATERALE CARENA SX V.BLU HIL.

6
P2R reference P2R reference 53992
Maker reference Maker reference AP8178394

AP8178394 - LATERALE CARENA SX V.BLU HIL.

More information

Quantity required : 1
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

7
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 8
AP8104716 - TAPPO DI FISSAGGIO

8
P2R reference P2R reference 45447
Maker reference Maker reference AP8104716

AP8104716 - TAPPO DI FISSAGGIO

More information

Quantity required : 1
AP8117205 - PANNEAU THERMOFUGE GCHE;

9
P2R reference P2R reference 46252
Maker reference Maker reference AP8117205

AP8117205 - PANNEAU THERMOFUGE GCHE;

More information

Quantity required : 1
AP8117206 - PANNEAU THERMOFUGE DTE;

10
P2R reference P2R reference 46253
Maker reference Maker reference AP8117206

AP8117206 - PANNEAU THERMOFUGE DTE;

More information

Quantity required : 1
DECAL "CAPONORD" ON RIGHT PANEL "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -AP8166788-

11
P2R reference P2R reference 52693
Maker reference Maker reference AP8166788

DECAL "CAPONORD" ON RIGHT PANEL "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -AP8166788-

More information

Quantity required : 1
DECAL "CAPONORD" ON LEFT PANEL "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -AP8166789-

12
P2R reference P2R reference 52694
Maker reference Maker reference AP8166789

DECAL "CAPONORD" ON LEFT PANEL "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD -AP8166789-

More information

Quantity required : 1
