Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

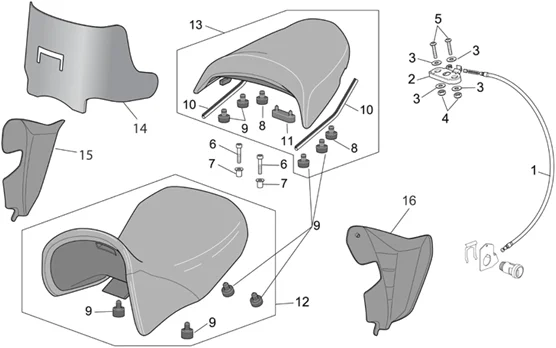

Chassis : 28.14 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.14.PNG)
1 |
AP8104345 - CABLE SERRURE; More informationQuantity required : 1 |
||||||
|
2 |
AP8102913 - PL.FIX.SELLE PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
3 |
AP8150179 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
4 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
5 |
AP8152117 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
6 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 2 |
||||||
|
7 |
AP8121511 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
8 |
AP8220349 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 2 |
||||||
|
9 |
AP8220517 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 8 |
||||||
|
10 |
AP8144461 - JOINT More informationQuantity required : 2 |
||||||
|
12 |
AP8129241 - SELLE PILOTE NOIRE; More informationQuantity required : 1 |
||||||
|
12 |
AP8129463 - SELLA PILOTA BLU More informationQuantity required : 1 |
||||||
|
13 |
AP8129251 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
||||||
|
13 |
AP8129464 - SELLA PASSEGGERO BLU More informationQuantity required : 1 |
||||||
|
14 |
AP8117201 - PROTECTION BR?LURE; More informationQuantity required : 1 |
||||||
|
15 |
AP8168317 - DEFLECTEUR AIR D.; More informationQuantity required : 1 |
||||||
|
16 |
AP8168318 - DEFLECTEUR AIR G.; More informationQuantity required : 1 |
