Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

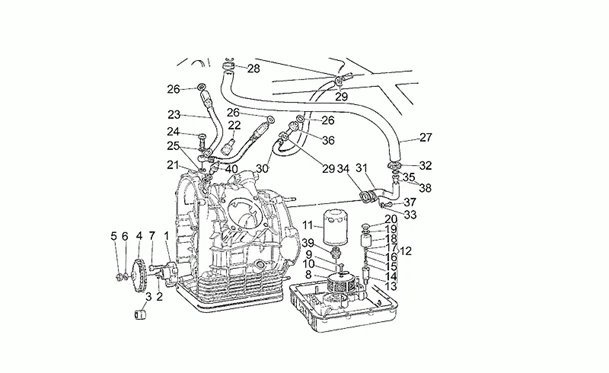

Moteur : 34.47 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_34.47.png)
1 |
GU30146400 - POMPE HUILE More informationQuantity required : 1 |
||||||
|
2 |
GU13148300 - CLAVETTE More informationQuantity required : 1 |
||||||
|
3 |
GU92252210 - ROULEMENT A ROULEAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/3/6/img/130636.jpg)
4 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30147700- More informationQuantity required : 1 |
||||||
|
5 |
GU92602308 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
GU95120085 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
7 |
GU98622430 - VIS M8X30 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/7/img/129217.jpg)
8 |
OIL FILTER STRAINER "PIAGGIO GENUINE PART" MOTO GUZZI 1000 CALIFORNIA 1983>, 850 LE MANS 1981 ,1000 LE MANS 1983>, 1000 SP3 1989>, 850 T5 1985> -GU14152200- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
9 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/0/img/132760.jpg)
10 |
GU95187006 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/3/1/4/0/img/103140.jpg)
11 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 SPORT 2006>, 850-1100-1200 BREVA, CALIFORNIA 1100 1999>, 1200 NORGE 2006>, V11, BELLAGIO 2007> 1200 STELVIO 2009> -GU30153000- More informationQuantity required : 1 |
||||||
|
12 |
GU03158200 - VALVOLA PRESS.OLIO CPL. More informationQuantity required : 1 |
||||||
|
13 |
VALVE BODY "PIAGGIO GENUINE PART" MOTO GUZZI BELLAGIO 940 2007>2013, CALIFORNIA 1100 1994>2012, V11 1999>2005 -GU30158701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/1/img/126161.jpg)
14 |
OIL "BY-PASS" PISTON - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30150900- More informationQuantity required : 1 |
||||||
|
15 |
GU94321079 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
16 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/3/img/126163.jpg)
17 |
GU30158900 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
GU30158800 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
19 |
GU18144350 - RONDELLE More informationQuantity required : 1 |
||||||
|
20 |
GU30159000 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
21 |
GU12006400 -JOINT More informationQuantity required : 1 |
||||||
|
22 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/8/6/img/101486.jpg)
23 |
OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU01153602- More informationQuantity required : 1 |
||||||
|
24 |
GU95990037 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
25 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/5/0/img/129950.jpg)
26 |
GU25656102 - GARNITURE More informationQuantity required : 4 |
||||||
|
27 |
AIR FILTER BREATHER HOSE "PIAGGIO GENUINE PART" MOTO-GUZZI 850 CALIFORNIA, 1000 LE-MANS, SP, STRADA -GU28157450- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/2/img/130132.jpg)
28 |
OIL HOSE CLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU28157850- More informationQuantity required : 1 |
||||||
|
29 |
GU93305017 - COLLIER More informationQuantity required : 4 |
||||||
|
30 |
GU00823956080 - T SAE J30 R7 8X14 More informationQuantity required : 1 |
||||||
|
31 |
GU01007200 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
32 |
GU12157800 - COLLIER More informationQuantity required : 1 |
||||||
|
33 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 2 |
||||||
|
34 |
GU12007600 - JOINT More informationQuantity required : 1 |
||||||
|
35 |
GU65061300 - JONC D ARRET More informationQuantity required : 1 |
||||||
|
36 |
GU28153960 - RACCORD More informationQuantity required : 2 |
||||||
|
37 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
38 |
GU28150560 - SOUPAPE RENIFLARD HUILE More informationQuantity required : 1 |
||||||
|
39 |
GU30003800 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/9/4/img/129394.jpg)
40 |
OIL PRESSURE SENSOR "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI -GU17768750- More informationQuantity required : 1 |
