Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

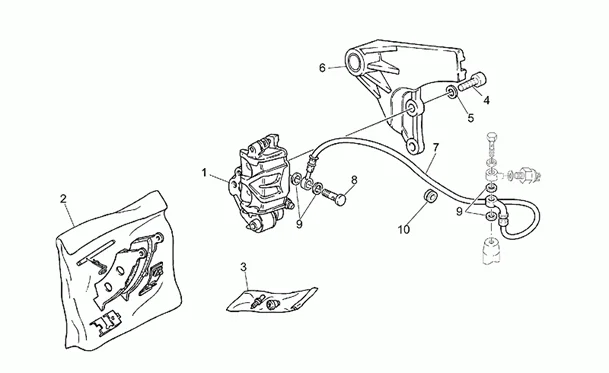

Chassis : 33.23 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_33.23.png)
1 |
GU03653000 - PINCE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
1 |
GU03653001 - PINCE FREIN AR OR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/4/1/img/128241.jpg)
2 |
GU03654600 - KIT PLAQUETTES More informationQuantity required : 1 |
||||||
|
3 |
AP8113549 - PURGE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
4 |
GU98622525 - VIS 25 MM More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
5 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 2 |
||||||
|
6 |
GU03635811 - PLAQ.FIX PINCE FREIN More informationQuantity required : 1 |
||||||
|
7 |
GU03657540 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
8 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
9 |
GU25656100 - GARNITURE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/7/img/132367.jpg)
10 |
GU91551131 - CAOUTCHOUC More informationQuantity required : 1 |
