Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

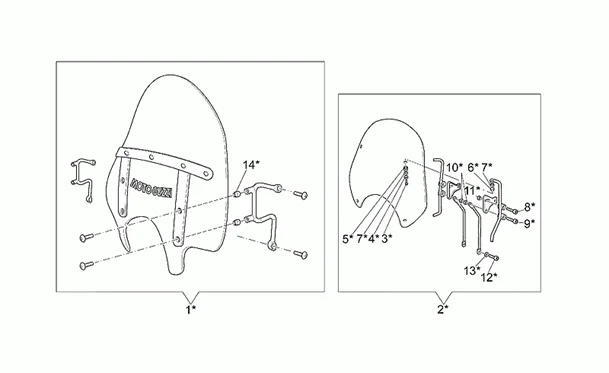

Chassis : 33.20 PARE-BRISE OPTIONAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_33.20.png)
1 |
WIND SHIELD CUSTOM "PIAGGIO GENUINE PART" CLEAR FOR MOTO-GUZZI 1100 CALIFORNIA AQUILA 2009>2011, STONE 2001>2002 -896361- More informationQuantity required : 1 |
||||||
|
3 |
GU98270620 - VIS More informationQuantity required : 4 |
||||||
|
4 |
GU03530543 - ROSETTA SAGOMATA More informationQuantity required : 4 |
||||||
|
5 |
GU03530546 - SILENT BLOCK More informationQuantity required : 4 |
||||||
|
6 |
GU03530545 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
7 |
GU03530544 - RONDELLE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
8 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
9 |
GU98622425 - VIS M8X25 More informationQuantity required : 2 |
||||||
|
10 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 3 |
||||||
|
11 |
GU92602408 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
12 |
GU98682316 - VIS M6X16 More informationQuantity required : 4 |
||||||
|
13 |
GU95000206 - RONDELLE More informationQuantity required : 4 |
||||||
|
14 |
GU91110608 - ENTRETOISE More informationQuantity required : 4 |
