Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

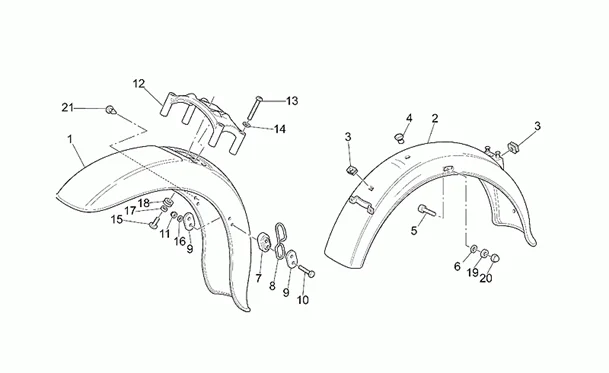

Chassis : 33.21 GARDE-BOUE AV./ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_33.21.png)
1 |
GU03434340 - PARAFANGO ANT.GREZZO More informationQuantity required : 1 |
||||||
|
2 |
GU03437041 - GARDE-BOUE AR, ROUGE More informationQuantity required : 1 |
||||||
|
2 |
GU03437042 - GARDE-BOUE AR NOIR More informationQuantity required : 1 |
||||||
|
2 |
GU03437043 - GARDE-BOUE ARRIERE GRIS More informationQuantity required : 1 |
||||||
|
2 |
GU03437044 - PARAFANGO POST.NERO OP. More informationQuantity required : 1 |
||||||
|
2 |
GU304370602 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
3 |
GU91551099 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
4 |
GU93180080 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
GU98230835 - VIS M8X35 More informationQuantity required : 2 |
||||||
|
6 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
GU03436400 - GOMMINO More informationQuantity required : 1 |
||||||
|
8 |
GU03436500 - GUIDACAVO More informationQuantity required : 1 |
||||||
|
9 |
GU03436300 - PIASTRINA More informationQuantity required : 2 |
||||||
|
10 |
GU98052225 - VIS More informationQuantity required : 2 |
||||||
|
11 |
GU92781053 - ECROU BORGNE More informationQuantity required : 2 |
||||||
|
12 |
GU03436600 - PLAQUE DE STABILISATION More informationQuantity required : 1 |
||||||
|
13 |
GU98230851 - VIS More informationQuantity required : 4 |
||||||
|
14 |
GU95004208 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
GU98230622 - VIS More informationQuantity required : 4 |
||||||
|
16 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU30576100 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
18 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
19 |
GU30435560 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/2/img/132562.jpg)
20 |
GU92781085 - ECROU BORGNE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/9/img/132569.jpg)
21 |
RUBBER Ø 5MM -GU93180072- More informationQuantity required : 2 |
