Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

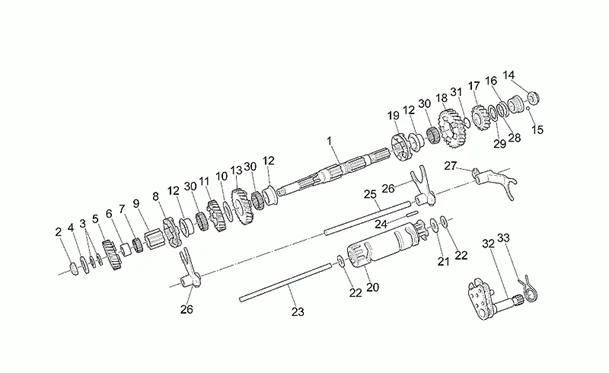

Moteur : 34.37 ARBRE SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_34.37.png)
1 |
GU14213612 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
2 |
GU14217410 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/7/img/131907.jpg)
3 |
GU43083810 - RONDELLE AJUSTEM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/2/7/img/129227.jpg)
4 |
GU14215400 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
|
5 |
GU03215100 - INGRANAGGIO 4A AS 5 INN.Z=20 More informationQuantity required : 1 |
||||||
|
6 |
GU92259017 - BAGUE 4A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/9/img/132429.jpg)
7 |
ROLLER BEARING FOR SECONDARY SHAFT "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNI, 850 T3, 1000 DAYTONA, LE MANS, QUOTA, SP, STRADA, V10 -GU92251022- More informationQuantity required : 1 |
||||||
|
8 |
GU30231025 - MANCHON 3A-4A AS 5 INN. More informationQuantity required : 1 |
||||||
|
9 |
GU14232512 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/3/0/img/129230.jpg)
10 |
GU14218011 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
GU03214800 - INGRANAGGIO 3A AS 5 INN.Z=22 More informationQuantity required : 1 |
||||||
|
12 |
GU14213001 - DOUILLE 1A-2A-3A AS More informationQuantity required : 1 |
||||||
|
13 |
GU03214500 - INGRANAGGIO 2A AS 5 INN.Z=25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/3/2/img/129232.jpg)
14 |
GU14219310 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
GU92295702 - BILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/2/8/img/129228.jpg)
16 |
GU14217300 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
GU14215213 - ENGRENAGE 5A AS Z=21 More informationQuantity required : 1 |
||||||
|
18 |
GU30214225 - ENGRENAGE 1A AS 5 INN.Z=28 More informationQuantity required : 1 |
||||||
|
19 |
GU30230725 - BALADEUR 1A-2AAS5 INN More informationQuantity required : 1 |
||||||
|
20 |
GU14234405 - TAMBOUR DE COMMANDE More informationQuantity required : 1 |
||||||
|
21 |
GU14235500 - RONDELLE More informationQuantity required : 1 |
||||||
|
22 |
GU55235000 - RONDELLE AJUSTEM.0,6 MM More informationQuantity required : 2 |
||||||
|
22 |
GU55235001 - RONDELLE AJUSTEM.0,8 MM More informationQuantity required : 2 |
||||||
|
22 |
GU55235002 - RONDELLE AJUSTEM.1 MM More informationQuantity required : 2 |
||||||
|
22 |
GU55235003 - RONDELLE AJUSTEM.1,2 MM More informationQuantity required : 2 |
||||||
|
23 |
GU14234300 - TIGE More informationQuantity required : 3 |
||||||
|
24 |
GU14234600 - GOUPILLE More informationQuantity required : 1 |
||||||
|
25 |
GU14232400 - TIGE More informationQuantity required : 4 |
||||||
|
26 |
GU14230501 - FOURCHETTE 1A-2A-3A-4A More informationQuantity required : 1 |
||||||
|
27 |
GU14231201 - FOURCHETTE 5A More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/5/img/132225.jpg)
28 |
GU90706219 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/4/img/130134.jpg)
29 |
GU28217350 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/3/2/img/132432.jpg)
30 |
GU92251030 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
31 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 3 |
||||||
|
32 |
GU03236250 - PRESELETTORE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/6/img/130136.jpg)
33 |
PRIMARY GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI RANGE -GU28238261- More informationQuantity required : 1 |
