Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

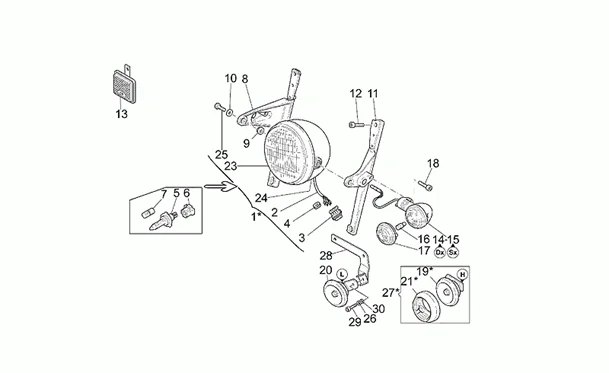

Chassis : 33.11 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_33.11.png)
1 |
GU03740531 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
GU037405405 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
GU037405455 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
GU02746900 - CABLAGGIO More informationQuantity required : 1 |
||||||
|
3 |
GU01756100 - CONNETTORE 4 VIE AMP More informationQuantity required : 1 |
||||||
|
4 |
GU91551033 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/0/0/5/img/102005.jpg)
6 |
GU01756220 - PORTALAMPADA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
7 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
8 |
GU03496130 - SUPPORTO DX More informationQuantity required : 1 |
||||||
|
9 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
10 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU03496230 - SUPPORTO SX More informationQuantity required : 1 |
||||||
|
12 |
GU98622318 - VIS M6X18 More informationQuantity required : 2 |
||||||
|
13 |
GU14781670 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
GU03750631 - CLIGNOTANT AV DROITE More informationQuantity required : 1 |
||||||
|
15 |
GU03750630 - CLIGNOTANT AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
16 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
17 |
AP8124111 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/2/img/71922.jpg)
18 |
AP8152156 - VIS More informationQuantity required : 2 |
||||||
|
19 |
GU31975965 - KIT AVVISATORI TONO ALTO More informationQuantity required : 1 |
||||||
|
20 |
883463 - CLAXON TONO L More informationQuantity required : 1 |
||||||
|
21 |
GU31744765 - MASQUE POUR KLAXON More informationQuantity required : 2 |
||||||
|
23 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
23 |
GU29740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
24 |
GU03740437 - CALOTTE ARRIERE NOIR More informationQuantity required : 1 |
||||||
|
25 |
GU02740459 - VIS-SERIE More informationQuantity required : 1 |
||||||
|
26 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
GU03975940 - KIT KLAXON More informationQuantity required : 1 |
||||||
|
28 |
GU03744240 - PLAQUE More informationQuantity required : 1 |
||||||
|
29 |
GU98682312 - VIS TCEI M6X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
30 |
AP8152105 - RONDELLE More informationQuantity required : 1 |
