Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

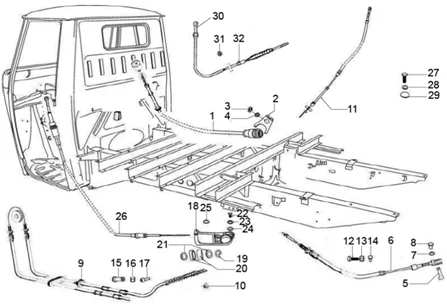

Transmisisons : 05.10 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_05.10.PNG)
1 |
632353 - CABLE COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
2 |
569697 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
3 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
5 |
227810 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
632356 - CABLE More informationQuantity required : 1 |
||||||
|
7 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
604717 - POMELLO More informationQuantity required : 1 |
||||||
|
9 |
632356 - CABLE More informationQuantity required : 1 |
||||||
|
10 |
604502 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/0/4/img/115404.jpg)
11 |
652028 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/6/img/65676.jpg)
12 |
090527 - VIS TENDEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
13 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
14 |
119278 - EMBOUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/5/img/139375.jpg)
15 |
116260 - CAPUCHON More informationQuantity required : 2 |
||||||
|
16 |
B011531 - ECROU More informationQuantity required : 4 |
||||||
|
16 |
B011531 - ECROU More informationQuantity required : 4 |
||||||
|
17 |
075126 - TERMINALE More informationQuantity required : 1 |
||||||
|
18 |
568991 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.JPG)
19 |
005970 - BAGUE S00597000 More informationQuantity required : 1 |
||||||
|
20 |
197100 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
21 |
197101 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
22 |
031092 - VIS More informationQuantity required : 3 |
||||||
|
23 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
24 |
003056 - RONDELLE More informationQuantity required : 3 |
||||||
|
25 |
005970 - BAGUE S00597000 More informationQuantity required : 1 |
||||||
|
26 |
652048 - CABLE More informationQuantity required : 1 |
||||||
|
27 |
198662 - BULLONE More informationQuantity required : 1 |
||||||
|
28 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/6/6/img/109766.jpg)
29 |
221280 - DISCHETTO More informationQuantity required : 2 |
||||||
|
30 |
652051 - CABLE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
31 |
020206 - ECROU S02020600 More informationQuantity required : 2 |
||||||
|
32 |
119278 - EMBOUT More informationQuantity required : 1 |
