Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

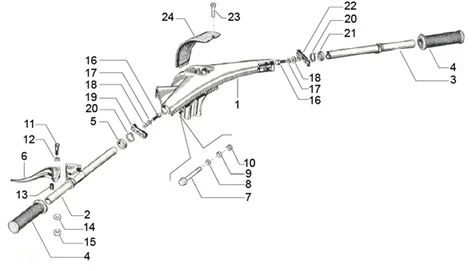

Guidon/direction : 03.05 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_03.05.PNG)
1 |
567567 - CORPO MANUBRIO More informationQuantity required : 1 |
||||||
|
3 |
587902 - TUYAU More informationQuantity required : 1 |
||||||
|
4 |
141925 - POIGNEE EX 060304 More informationQuantity required : 2 |
||||||
|
5 |
109404 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
164906 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/2/2/img/111322.jpg)
7 |
SCREW - HEX "PIAGGIO GENUINE PART" -030103- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
8 |
016626 - RONDELLE More informationQuantity required : 2 |
||||||
|
9 |
B041653 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
10 |
020110 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
018517 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.JPG)
12 |
006968 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
125181 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
14 |
016620 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
15 |
012138 - ECROU S01213800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
16 |
031089 - BOULON S03108900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
17 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
|
18 |
003055 - RONDELLE More informationQuantity required : 2 |
||||||
|
19 |
109775 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/6/img/65656.JPG)
20 |
060565 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
587904 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
632158 - VIS More informationQuantity required : 1 |
||||||
|
24 |
604543 - COUVERCLE More informationQuantity required : 1 |
