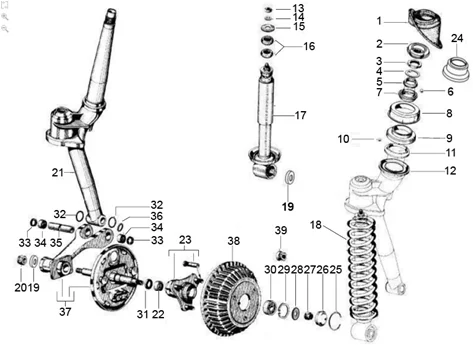

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015 PIAGGIO VU

Roues : 04.02 FOURCHE/TUBE DIRECTION - ENSEMBLE BUTEE DIR.
Fourche/tube direction - ensemble butee dir.
Search
109265 - MANCHON

1
P2R reference P2R reference 114781
Maker reference Maker reference 109265

109265 - MANCHON

More information

Quantity required : 1

604759 - PROTECTION

2
P2R reference P2R reference 111953
Maker reference Maker reference 604759

604759 - PROTECTION

More information

Quantity required : 1

10887451 - DOUILLE

3
P2R reference P2R reference 116309
Maker reference Maker reference 10887451

10887451 - DOUILLE

More information

Quantity required : 1

108873 - BAGUE

4
P2R reference P2R reference 110988
Maker reference Maker reference 108873

108873 - BAGUE

More information

Quantity required : 1

567991 - DOUILLE

5
P2R reference P2R reference 117076
Maker reference Maker reference 567991

567991 - DOUILLE

More information

Quantity required : 1

014246 - BILLE

6
P2R reference P2R reference 65372
Maker reference Maker reference 0142465

014246 - BILLE

More information

Quantity required : 30

567990 - CONE

7
P2R reference P2R reference 116605
Maker reference Maker reference 567990

567990 - CONE

More information

Quantity required : 1

109064 - CUVETTE

8
P2R reference P2R reference 113326
Maker reference Maker reference 109064

109064 - CUVETTE

More information

Quantity required : 1

567992 - BUTEE

9
P2R reference P2R reference 116901
Maker reference Maker reference 567992

567992 - BUTEE

More information

Quantity required : 1

006380 - BILLE S00638000

10
P2R reference P2R reference 110226
Maker reference Maker reference 0063805

006380 - BILLE S00638000

More information

Quantity required : 28

567993 - CONE

11
P2R reference P2R reference 115843
Maker reference Maker reference 567993

567993 - CONE

More information

Quantity required : 1

109066 - RONDELLE

12
P2R reference P2R reference 115827
Maker reference Maker reference 109066

109066 - RONDELLE

More information

Quantity required : 1

021110 - ECROU S02111000

13
P2R reference P2R reference 65599
Maker reference Maker reference 0211105

021110 - ECROU S02111000

More information

Quantity required : 1

016410 - ANNEAU

14
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

016410 - ANNEAU

More information

Quantity required : 1

567427 - RONDELLE

15
P2R reference P2R reference 111132
Maker reference Maker reference 567427

567427 - RONDELLE

More information

Quantity required : 1

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" APE -074414

16
P2R reference P2R reference 111385
Maker reference Maker reference 0744145

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" APE -074414

More information

Quantity required : 2

632719 - AMORTISSEUR AVANT

17
P2R reference P2R reference 119667
Maker reference Maker reference 632719

632719 - AMORTISSEUR AVANT

More information

Quantity required : 1

616931 - RESSORT

18
P2R reference P2R reference 116764
Maker reference Maker reference 616931

616931 - RESSORT

More information

Quantity required : 1

643539 -

19
P2R reference P2R reference 113941
Maker reference Maker reference 643539

643539 -

More information

Quantity required : 2

568095 - ECROU

20
P2R reference P2R reference 111702
Maker reference Maker reference 568095

568095 - ECROU

More information

Quantity required : 1

661720 - TUBE DIRECTION

21
P2R reference P2R reference 123158
Maker reference Maker reference 661720

661720 - TUBE DIRECTION

More information

Quantity required : 1

125289 - ROULEMENT

22
P2R reference P2R reference 114778
Maker reference Maker reference 125289

125289 - ROULEMENT

More information

Quantity required : 1

644899 - ARBRE ROUE

23
P2R reference P2R reference 122292
Maker reference Maker reference 644899

644899 - ARBRE ROUE

More information

Quantity required : 1

604758 - PROTECTION

24
P2R reference P2R reference 111412
Maker reference Maker reference 604758

604758 - PROTECTION

More information

Quantity required : 1

107870 - CIRCLIPS

25
P2R reference P2R reference 111242
Maker reference Maker reference 107870

107870 - CIRCLIPS

More information

Quantity required : 1

107871 - BOUCHON

26
P2R reference P2R reference 112084
Maker reference Maker reference 107871

107871 - BOUCHON

More information

Quantity required : 1

NUT - FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" APE -074521

27
P2R reference P2R reference 65663
Maker reference Maker reference 0745215

NUT - FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" APE -074521

More information

Quantity required : 1

180431 - CUVETTE

28
P2R reference P2R reference 142781
Maker reference Maker reference 180431

180431 - CUVETTE

More information

Quantity required : 1

567473 - CIRCLIPS

29
P2R reference P2R reference 110874
Maker reference Maker reference 567473

567473 - CIRCLIPS

More information

Quantity required : 1

030209 - ROULEMENT

30
P2R reference P2R reference 65627
Maker reference Maker reference 0302095

030209 - ROULEMENT

More information

Quantity required : 1

136434 - BAGUE

31
P2R reference P2R reference 114131
Maker reference Maker reference 136434

136434 - BAGUE

More information

Quantity required : 1

006733 - JOINT

32
P2R reference P2R reference 63835
Maker reference Maker reference 0067335

006733 - JOINT

More information

Quantity required : 2

008771 - BAGUE S00877100

33
P2R reference P2R reference 63859
Maker reference Maker reference 0087715

008771 - BAGUE S00877100

More information

Quantity required : 2

107718 - ASTUCCIO A RUL

34
P2R reference P2R reference 116754
Maker reference Maker reference 107718

107718 - ASTUCCIO A RUL

More information

Quantity required : 2

611746 - POULIE

35
P2R reference P2R reference 115184
Maker reference Maker reference 611746

611746 - POULIE

More information

Quantity required : 1

150579 - JOINT

36
P2R reference P2R reference 65749
Maker reference Maker reference 150579

150579 - JOINT

More information

Quantity required : 2

616526 - AXE ROUE

37
P2R reference P2R reference 118584
Maker reference Maker reference 616526

616526 - AXE ROUE

More information

Quantity required : 1

152580 - TAMBOUR

38
P2R reference P2R reference 120833
Maker reference Maker reference 152580

152580 - TAMBOUR

More information

Quantity required : 1

660931 - ECROU ROUE ( M 12 X 1.5 )

39
P2R reference P2R reference 111232
Maker reference Maker reference 660931

660931 - ECROU ROUE ( M 12 X 1.5 )

More information

Quantity required : 3
