Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

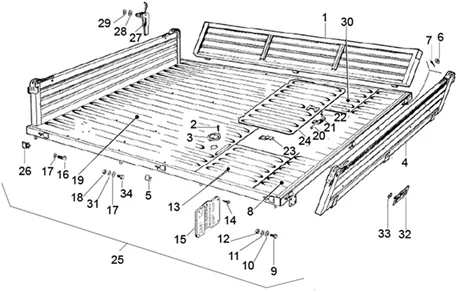

Parties plastiques-carrosseries : 02.18 BENNE OUVERTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_02.18.PNG)
1 |
B042529ED - CACHE G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
2 |
SCREW - -008432- More informationQuantity required : 4 |
||||||
|
3 |
212558 - COUVERCLE More informationQuantity required : 2 |
||||||
|
5 |
127046 - TAMPON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057- More informationQuantity required : 3 |
||||||
|
7 |
B005668 - GOUPILLE More informationQuantity required : 3 |
||||||
|
8 |
1882826 - PARTIE AR PLATEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/8/img/65338.jpg)
9 |
010047 - VIS S01004700 More informationQuantity required : 4 |
||||||
|
10 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
12 |
020105 - ECROU S02010500 More informationQuantity required : 4 |
||||||
|
13 |
1882785 - PARTIE LAT G More informationQuantity required : 1 |
||||||
|
16 |
031117 - BOULON S03111700 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
17 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
18 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 6 |
||||||
|
19 |
1882766 - PARTE ANT.PAV. More informationQuantity required : 1 |
||||||
|
20 |
017718 - GOUPILLE More informationQuantity required : 2 |
||||||
|
21 |
162548 - CLIQUET More informationQuantity required : 2 |
||||||
|
22 |
162549 - RESSORT More informationQuantity required : 2 |
||||||
|
23 |
162546 - RESSORT More informationQuantity required : 2 |
||||||
|
24 |
6117665 - PORTELLO CPL T More informationQuantity required : 1 |
||||||
|
26 |
186323 - SILENT BLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
28 |
003058 - RONDELLE S00305800 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
29 |
005967 - CLIPS S00596700 More informationQuantity required : 4 |
||||||
|
30 |
1882776 - RIDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.JPG)
31 |
002383 - RONDELLE More informationQuantity required : 1 |
||||||
|
32 |
199162 - MONOGRAMME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/6/img/63846.jpg)
33 |
008108 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
34 |
031119 - BOULON More informationQuantity required : 1 |
