Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

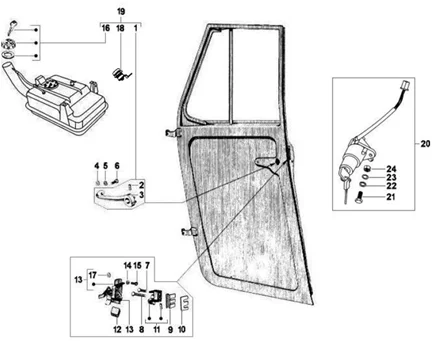

Parties plastiques-carrosseries : 02.37 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_02.37.PNG)
2 |
008814 - GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
837147 - SET POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/0/img/63800.JPG)
4 |
006018 - RONDELLE S00601800 More informationQuantity required : 1 |
||||||
|
6 |
000702 - VIS S00070200 More informationQuantity required : 3 |
||||||
|
7 |
569156 - VIS More informationQuantity required : 1 |
||||||
|
8 |
569157 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/4/4/img/111244.jpg)
9 |
140603 - PLAQUE More informationQuantity required : 1 |
||||||
|
10 |
193724 - PLAQUETTE EPAISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/5/2/4/img/113524.jpg)
11 |
182662 - BLOC SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/8/4/img/116284.jpg)
11 |
182663 - BLOC DE SERRURE MPF/MPV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/5/5/img/115455.jpg)
12 |
182655 - BOUTON More informationQuantity required : 1 |
||||||
|
13 |
182661R - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/8/0/8/img/142808.jpg)
13 |
182660R - SERRURE More informationQuantity required : 1 |
||||||
|
15 |
000702 - VIS S00070200 More informationQuantity required : 3 |
||||||
|
16 |
FUEL CAP "PIAGGIO GENUINE PART" APE -B024170- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
17 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057- More informationQuantity required : 1 |
||||||
|
18 |
B024169 - CLÉS DE COUPLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/8/2/img/118082.JPG)
19 |
B042633 - KIT SERRURES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/4/7/8/img/119478.JPG)
20 |
652046 - COMMUTATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
21 |
031089 - BOULON S03108900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
22 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
23 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
24 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
