Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

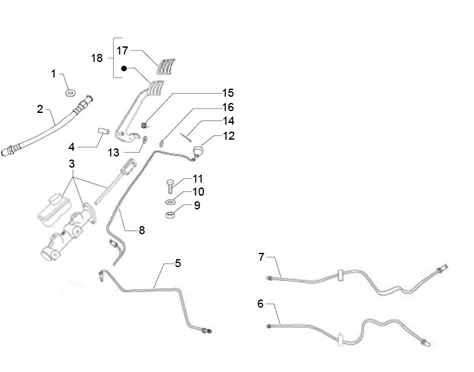

Transmisisons : 05.05 SYSTEME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_05.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/3/0/img/110130.jpg)
1 |
GASKET ON FUEL FILTER PIPE "PIAGGIO GENUINE PART" PIAGGIO APE, CALESSINO DIESEL -127927R- More informationQuantity required : 2 |
|||||||||
2 |
644814R - CANALISATION FREINS More informationQuantity required : 2 |
|||||||||
|
2 |
644814 - TUYAU More informationQuantity required : 2 |
|||||||||
|
3 |
652338 - POMPE FREIN More informationQuantity required : 1 |
|||||||||
|
4 |
652001 - PIVOT More informationQuantity required : 1 |
|||||||||
|
5 |
660333 - TUYAU More informationQuantity required : 1 |
|||||||||
|
6 |
644812 - TUYAU DE FREIN ROUE ARRIERE DROITE More informationQuantity required : 1 |
|||||||||
|
7 |
644813 - TUYAU DE FREIN ROUE ARRIERE GAUCHE More informationQuantity required : 1 |
|||||||||
|
8 |
568161 - TUYAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
9 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
11 |
031122 - BOULON FIX BRAS More informationQuantity required : 2 |
|||||||||
|
12 |
138237 - CAPUCHON More informationQuantity required : 1 |
|||||||||
|
13 |
229524 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
14 |
567920 - GOUPILLE More informationQuantity required : 1 |
|||||||||
|
15 |
587928 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
16 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
|
17 |
567461 - TAMPON More informationQuantity required : 1 |
|||||||||
|
18 |
604760 - PEDALE DE FREIN More informationQuantity required : 1 |
|||||||||
