Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 E4 Model Year 2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

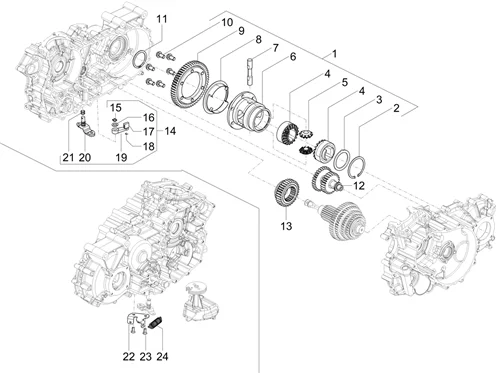

Moteur : 01.14 DIFFÉRENTIEL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/858/Ape_Calessino_200_E4_Model_Year_2019_01.14.png)
1 |
SP1A006804 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
2 |
132134 - BAGUE More informationQuantity required : 1 |
||||||
|
3 |
220575 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/5/3/img/121953.JPG)
4 |
1321364 - PLANETAIRE More informationQuantity required : 2 |
||||||
|
5 |
1651554 - PIGNON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/0/img/151140.JPG)
6 |
288730 - BOITE DIFFERENTIEL More informationQuantity required : 1 |
||||||
|
7 |
132129 - PIVOT More informationQuantity required : 1 |
||||||
|
8 |
132244 - FIXATION More informationQuantity required : 1 |
||||||
|
9 |
1A006805 - COURONNE More informationQuantity required : 1 |
||||||
|
10 |
1A004807 - VIS More informationQuantity required : 6 |
||||||
|
11 |
006450 - CIRCLIPS S00645000 More informationQuantity required : 1 |
||||||
|
12 |
1A006806 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
13 |
1A009779 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
14 |
1A007579 - REMPLIR INVERTER DE COMMANDE. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
15 |
CIRCLIP FOR DRIVE PULLEY "PIAGGIO GENUINE PART" PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -006410- More informationQuantity required : 1 |
||||||
|
16 |
1A007501 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
17 |
1A007051 - DOIGT More informationQuantity required : 1 |
||||||
|
18 |
843000500 - ANNEAU More informationQuantity required : 1 |
||||||
|
19 |
1A007605 - LEVIER BOITE DE VITESSES More informationQuantity required : 1 |
||||||
|
20 |
1A009093 - REMPLIR INVERTER DE COMMANDE More informationQuantity required : 1 |
||||||
|
21 |
1A005176 - O-RING More informationQuantity required : 2 |
||||||
|
22 |
1A008804 - PATTE More informationQuantity required : 1 |
||||||
|
23 |
B017088 - VIS More informationQuantity required : 2 |
||||||
|
24 |
1A009090 - RESSORT More informationQuantity required : 1 |
