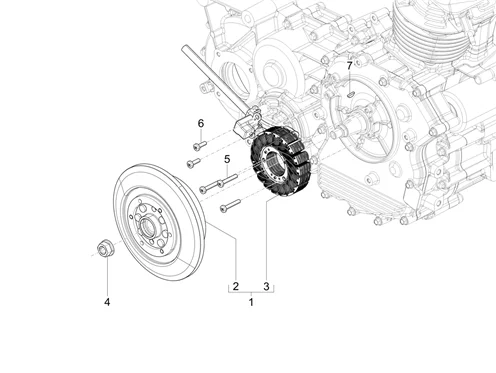

Moteur : 01.10 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/858/Ape_Calessino_200_E4_Model_Year_2019_01.10.png)
1 |
1D002080 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
2 |
1A009302 - ROTOR More informationQuantity required : 1 |
||||||
|
3 |
1D001846 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
4 |
1A006988 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/2/7/img/159227.JPG)
6 |
1A001073 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
7 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 1 |
