Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 E4 Model Year 2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

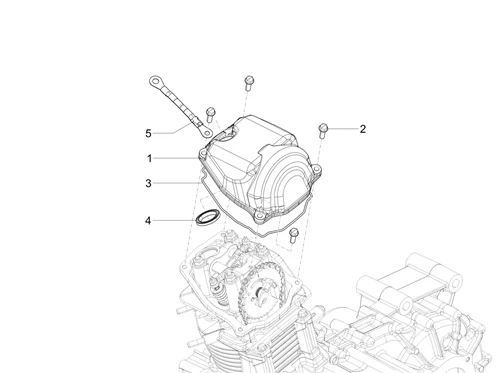

Moteur : 01.07 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/858/Ape_Calessino_200_E4_Model_Year_2019_01.07.png)
Search
1 |
1A006545 - COUVERCLE CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
018639 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/4/img/110474.JPG)
3 |
B018533 - JOINT C/C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/3/0/img/110430.JPG)
4 |
B014732 - JOINT BOUGIE More informationQuantity required : 1 |
||||||
|
5 |
1D001894 - SANGLE DE MASSE More informationQuantity required : 1 |
