Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 E4 Model Year 2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

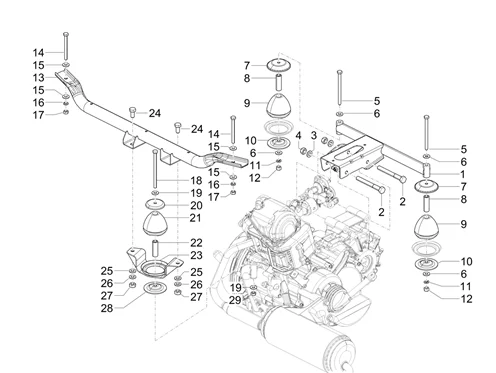

Châssis - parties plastiques - carrosseries : 02.05 SUPPORTS MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/858/Ape_Calessino_200_E4_Model_Year_2019_02.05.png)
1 |
B075459 - BRAS. DE LA SUSP. MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
568689 - VIS More informationQuantity required : 2 |
||||||
|
3 |
286328 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
4 |
231370 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
604948 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.JPG)
6 |
002383 - RONDELLE More informationQuantity required : 4 |
||||||
|
7 |
569377 - PLATEAU More informationQuantity required : 2 |
||||||
|
8 |
569241 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/7/img/115177.jpg)
9 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO 400 APE, CLASSIC, CALESSINO -265091- More informationQuantity required : 2 |
||||||
|
10 |
569244 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
11 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
|
12 |
015335 - ECROU S01533500 More informationQuantity required : 2 |
||||||
|
13 |
B075595 - BRAS. DE LA SUSP. MOTEUR More informationQuantity required : 1 |
||||||
|
14 |
B076205 - ECROU More informationQuantity required : 2 |
||||||
|
15 |
002383 - RONDELLE More informationQuantity required : 4 |
||||||
|
16 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
17 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/2/img/66112.jpg)
18 |
272178 - BOULON More informationQuantity required : 1 |
||||||
|
19 |
002383 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
569375 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
21 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO 400 APE, CLASSIC, CALESSINO -265091- More informationQuantity required : 1 |
||||||
|
22 |
569241 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
23 |
B003286 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
25 |
016410 - ANNEAU More informationQuantity required : 2 |
||||||
|
26 |
286328 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
27 |
020110 - ECROU More informationQuantity required : 2 |
||||||
|
28 |
569244 - PLAQUE More informationQuantity required : 1 |
||||||
|
29 |
B008292 - VIS More informationQuantity required : 1 |
