Vehicle Exploded View - PIAGGIO VU APE CALESSINO 0 Ape Calessino 200 E4 Model Year 2019 PIAGGIO VU

Châssis - parties plastiques - carrosseries : 02.25 COMPOSANTS DE LA CABINE

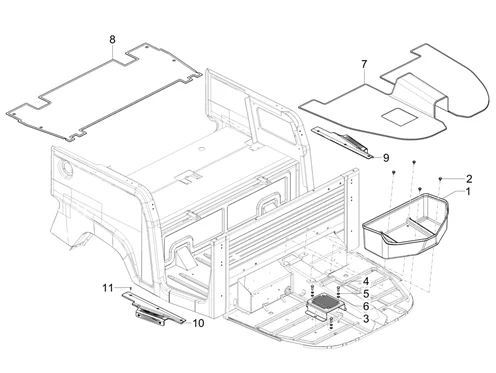

Composants de la cabine
Search
CM288916 - Vis

2
P2R reference P2R reference 151147
Maker reference Maker reference CM288916

CM288916 - VIS

More information

Quantity required : 4
B075267 - TAPIS

3
P2R reference P2R reference 159317
Maker reference Maker reference B075267

B075267 - TAPIS

More information

Quantity required : 1
031119 - BOULON

4
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

031119 - BOULON

More information

Quantity required : 3
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

5
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 3
003058 - RONDELLE S00305800

6
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 3
B074060 - TAPPETO PEDANA POSTERIORE

7
P2R reference P2R reference 159318
Maker reference Maker reference B074060

B074060 - TAPPETO PEDANA POSTERIORE

More information

Quantity required : 1
B041225 - TAPIS

8
P2R reference P2R reference 142820
Maker reference Maker reference B041225

B041225 - TAPIS

More information

Quantity required : 1
015911 - VIS S01591100

11
P2R reference P2R reference 65403
Maker reference Maker reference 0159115

015911 - VIS S01591100

More information

Quantity required : 10
