Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

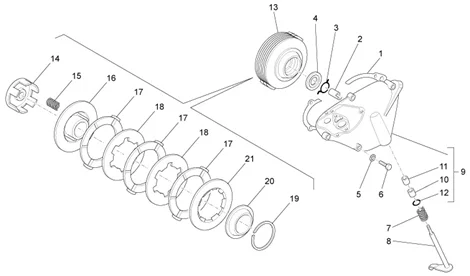

Moteur : 01.34 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.34.PNG)
1 |
B018214 - JOINT COUVERCLE EMBR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/5/2/img/117152.jpg)
2 |
871561 - BUTEE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/3/img/66173.jpg)
3 |
286406 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/8/img/66158.jpg)
4 |
CLUTCH PUSH COLLAR "PIAGGIO GENUINE PART" PIAGGIO 50 APE -2860245- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
5 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
6 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 6 |
||||||
|
6 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/9/img/65979.jpg)
7 |
239275 - RESSORT More informationQuantity required : 1 |
||||||
|
8 |
2885075 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
9 |
8715765 - COUVERCLE EMBRAYAGE COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/9/img/66159.jpg)
10 |
286101 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/7/img/65767.jpg)
11 |
CLUTCH COMMAND BUSH "PIAGGIO GENUINE PART" 50 APE -165945- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/1/img/63831.jpg)
12 |
006710 - GARNITURE S00671000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/3/5/img/121935.jpg)
13 |
COMPLETE CLUTCH "PIAGGIO GENUINE PART" 50 APE -2898935- More informationQuantity required : 1 |
||||||
|
14 |
2898774 - MOYEU EMB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/9/img/66229.jpg)
15 |
289613 - RESSORT More informationQuantity required : 6 |
||||||
|
16 |
2860135 - DISQUE EMB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/3/img/66153.jpg)
17 |
DRIVING CLUTCH DISC "PIAGGIO GENUINE PART" 50 APE, VESPA FL2 -2859741- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/5/img/66155.jpg)
18 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" 50 APE, VESPA FL2 -2860144- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/7/img/66157.jpg)
19 |
286019 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/6/img/66156.jpg)
20 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 50 APE -286018- More informationQuantity required : 1 |
||||||
|
21 |
2862975 - DISQUE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
