Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

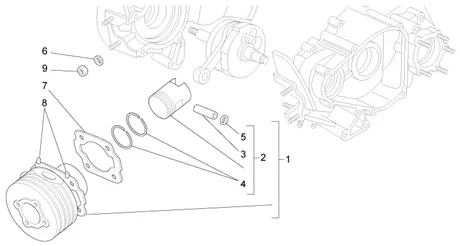

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/2/9/img/122829.jpg)
1 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 50 APE -828679- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/6/img/65986.jpg)
2 |
PISTON "PIAGGIO GENUINE PART" 50 APE, VESPA 50 FL2 -2432740002- More informationQuantity required : 1 |
||||||
2 |
2432740003 - GR.PISTONE-SPI More informationQuantity required : 1 |
||||||
|
2 |
243276 - PISTON CPLT 2EME More informationQuantity required : 1 |
||||||
|
3 |
879434 - AXE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/2/img/65972.jpg)
4 |
235598 - SEGMENT CN TM50 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/8/img/63818.JPG)
5 |
006612 - CIRCLIPS S00661200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
6 |
016407 - RONDELLE S01640700 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/9/img/68629.jpg)
7 |
CYLINDER BASE GASKET- "PIAGGIO GENUINE PART" 50 APE -826911- More informationQuantity required : 1 |
||||||
|
8 |
1B000428 - GOUJON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
9 |
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107- More informationQuantity required : 4 |
