Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

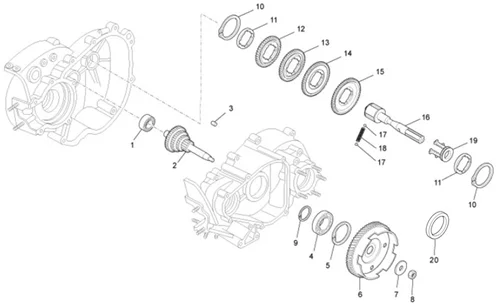

Moteur : 01.31 COMPOSANTS DE LA BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.31.PNG)
1 |
007035 - ROULEMENT S00703500 More informationQuantity required : 1 |
||||||
|
2 |
1250834 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/0/img/65340.jpg)
3 |
WOODRUFF KEY "PIAGGIO GENUINE PART" 50 APE -011753- More informationQuantity required : 1 |
||||||
|
4 |
007130 - ROULEMENT S00713000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
5 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/9/5/img/122895.jpg)
6 |
ROLLER CAGE - CLUTCH "PIAGGIO GENUINE PART" 50 APE -436951- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/0/img/65990.jpg)
7 |
244297 - RONDELLE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/7/img/63757.jpg)
8 |
001508 - ECROU S00150800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/7/img/63817.jpg)
9 |
006425 - CIRCLIPS S00642500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/3/img/63863.jpg)
10 |
009101 - CIRCLIPS S00910100 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/8/img/65738.jpg)
11 |
138393 - RONDELLE CN More informationQuantity required : 1 |
||||||
|
11 |
165418 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/3/img/65763.JPG)
11 |
165417 - BAGUE More informationQuantity required : 1 |
||||||
|
12 |
2854224 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
14 |
1654494 - PIGNON 2EM More informationQuantity required : 1 |
||||||
|
15 |
1654574 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
16 |
2425815 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
17 |
006379 - BILLE S00637900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/8/img/65748.jpg)
18 |
150110 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/3/img/65733.JPG)
19 |
1349026 - SELECTEUR 134902 More informationQuantity required : 1 |
||||||
|
20 |
B017344 - ENTRETOISE More informationQuantity required : 1 |
