Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

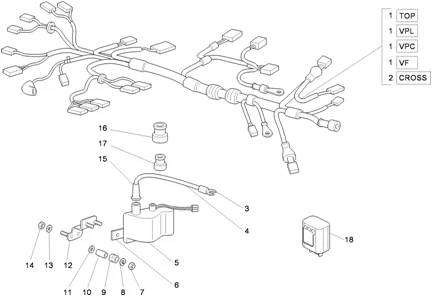

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_06.08.PNG)
1 |
B007237 - FAISCEAU DE CAB More informationQuantity required : 1 |
||||||
|
1 |
CM035602 - FAISCEAU DE CAB More informationQuantity required : 1 |
||||||
|
2 |
CM035801 - FAISCEAU DE CAB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/4/img/65724.jpg)
3 |
127966 - COSSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
4 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341- More informationQuantity required : 1 |
||||||
|
5 |
642219 - DISPOSITIF ELECTRON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/9/img/65989.jpg)
5 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 VESPA PX 1998>, 50 APE 1998> -244128- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
7 |
020106 - ECROU S02010600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
|
9 |
401605 - SILENBLOC More informationQuantity required : 2 |
||||||
|
10 |
401606 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
11 |
013880 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
B007160 - SUPPORT More informationQuantity required : 1 |
||||||
|
12 |
217292 - SUPPORT More informationQuantity required : 1 |
||||||
|
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
|
14 |
020106 - ECROU S02010600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
15 |
231571 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/7/img/65937.jpg)
16 |
217421 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/0/img/65940.jpg)
17 |
218988 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/3/9/img/118839.jpg)
18 |
FLASHER UNIT "PIAGGIO GENUINE PART" 125 TYPHOON, HEXAGON, SKIPPER, 50 VESPA ET2/GILERA 50-125 RUNNER -1E000357R- More informationQuantity required : 1 |
