Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

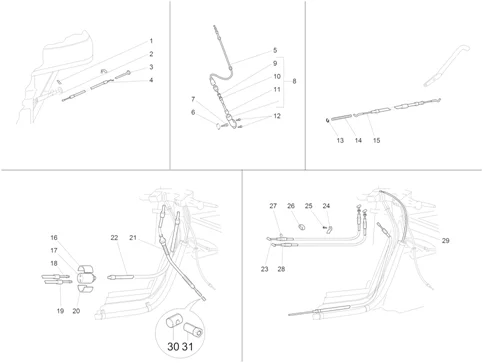

Transmissions : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/8/img/111588.JPG)
1 |
075962 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/4/img/65804.jpg)
2 |
183321 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/5/1/1/img/114511.jpg)
3 |
567083 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/4/8/img/116148.jpg)
4 |
612790 - TRANSMISSION More informationQuantity required : 1 |
||||||
5 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 APE -B026174- More informationQuantity required : 1 |
||||||
|
6 |
017503 - BAGUE S01750300 More informationQuantity required : 1 |
||||||
|
7 |
125256 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
8 |
1252535 - PRISE MOUV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/5/9/img/113259.jpg)
9 |
117402 - BAGUE More informationQuantity required : 1 |
||||||
|
10 |
117401 - BAGUE More informationQuantity required : 1 |
||||||
|
11 |
125254 - PIGNON COMPTEUR More informationQuantity required : 1 |
||||||
|
12 |
125647 - VIS More informationQuantity required : 2 |
||||||
|
13 |
258646 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/0/img/113930.jpg)
14 |
118806 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
15 |
181351 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
16 |
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
17 |
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/8/0/img/114880.jpg)
18 |
TRANSMISSION THROTTLE CABLE(FROM SPLITTER TO CARB) "PIAGGIO GENUINE PART" PIAGGIO 50 APE -567103- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/5/8/img/112758.jpg)
19 |
567104 - CABLE DE GAZ MELANGEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
20 |
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/1/0/img/117110.jpg)
21 |
FRONT BRAKE CABLE KIT "PIAGGIO GENUINE PARTS" 50 APE -566484- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/8/6/img/112886.jpg)
22 |
TRANSMISSION THROTTLE CABLE(FROM HANDLE TO SPLITTER) "PIAGGIO GENUINE PART" PIAGGIO 50 APE -B007701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/0/9/img/114909.jpg)
23 |
TRANSMISSION CABLE FOR GEARBOX CONTROL "PIAGGIO GENUINE PART" PIAGGIO 50 APE -658207- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/5/9/img/109859.jpg)
24 |
018732 - GRIFFE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
25 |
SCREW - -008432- More informationQuantity required : 4 |
||||||
|
26 |
127071 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
27 |
005967 - CLIPS S00596700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/8/6/img/113786.jpg)
29 |
CABLE KIT FOR CLUTCH COMMAND "PIAGGIO GENUINE PART" 50 APE -B007702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
30 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
31 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310- More informationQuantity required : 1 |
